  • Power amplifier / GaAs

6 - 18 GHz, 34.5 dBm | TGA2501

Article: 00005664

Power amplifier / GaAs

Key Features

34.5 dBm midband Pout
24 dB nominal gain
10 dB typical input return loss
5 dB typical output return loss
Bias conditions: 8 V @ 1.2 A
0.25 um Ku pHEMT 2MI

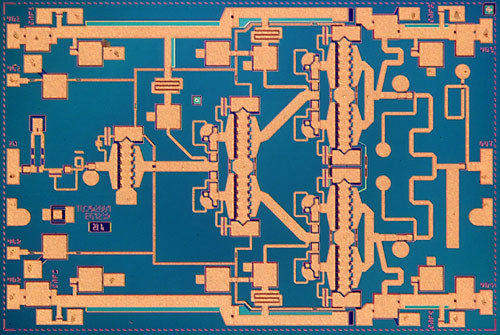

Chip dimensions: 4.3 x 2.9 x 0.1 mm (170 x 115 x 4 mils)

Specifications

  • Type: power
  • Other characteristics: GaAs
  • Voltage: 8 V
  • Current: 1200 mA

Other items
