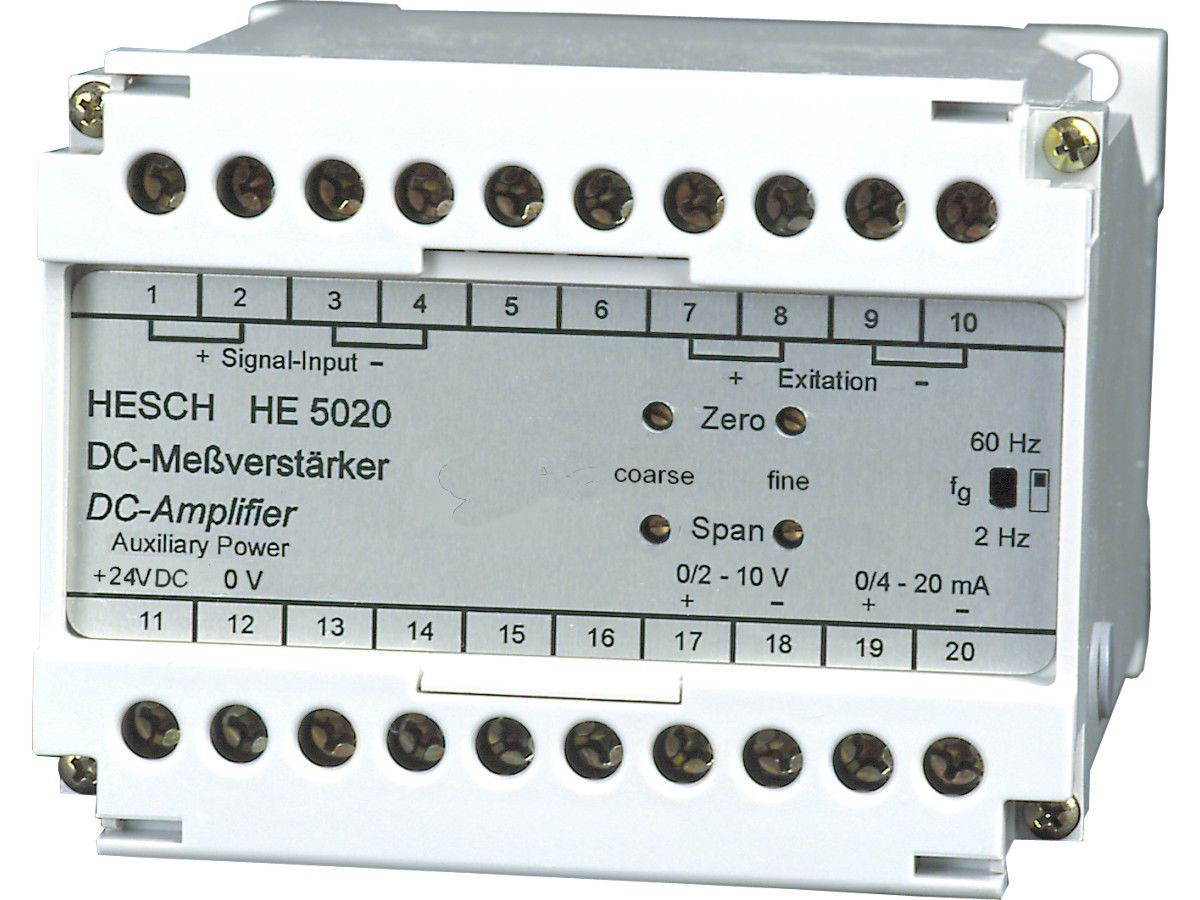

HE 5020

Article: 00006225

Signal conditioner amplifier / galvanic isolator / analog / DC

Features

Analog output 0(2)...10 V and 0(4)...20 mA
Calibration of point zero and full span value with trimmers in the front
Bridge voltage supply for up to 4 loadcells
Sensor breakage detection
Cut-off-frequency selectable (2 Hz / 60 Hz)
Galvanically separation between input/output and auxiliary energy

Brief Description

The DC instrument amplifier HE 5020 serves for the signal conditioning of force sensors and loadcells with strain gages to voltage and current standard signals.
Apart from a variable input sensitivity of 0.08... 3.3 mV/V the device enables the front-lateral adjustment of zero point, amplification and critical frequency. For the decoupling of the measuring circuits the HE 5020 is equipped with a galvanic isolation between input/output and auxiliary energy.
For many applications efficient measuring systems can be implemented to acceptable costs in combination with suitable HESCH measuring sensors.

Specifications

  • Type: signal conditioner, galvanic isolator, analog
  • Other characteristics: DC
