30 series

Article: 00006550

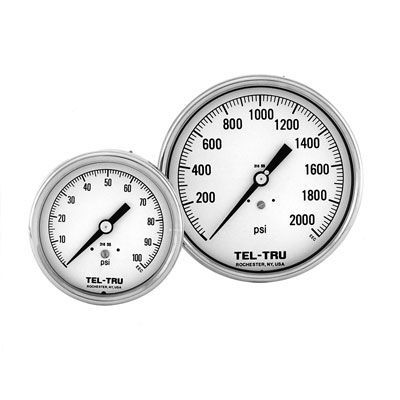

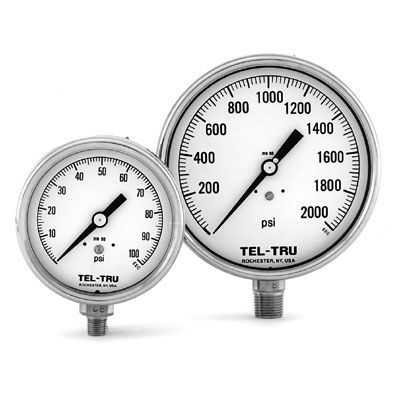

Pressure gauge / Bourdon tube / analog / process / industrial

Designed for heavy duty service in process and industrial applications such as chemical, petrochemical, power, food processing and biotechnology.
Designed for heavy duty service in process and industrial applications such as chemical, petrochemical, power, food processing and biotechnology.
Dial Size: 2-1/2", 4" or 6"
Accuracy: ±1% FS - ANSI Grade 1A
Case: 304SS
Bezel: 304SS Bayonet Lock Type
Socket: 316SS or Monel
Tube: 316SS or Monel
Movement: 316SS or Monel with Overload/ Underload Stops
Lens: Laminated Safety Glass
Pointer: 2-1/2": Non-Adjustable; 4": Friction Adjustable; 6": Micrometer Adjustable
Dial: Heavy Gage Aluminum
Connection: 2-1/2": 1/4" NPT Lower or Center Back
4": 1/4" NPT & 1/2" NPT Lower or Lower Back
6": 1/2" NPT Lower or Lower Back

Specifications

  • Technology: Bourdon tube
  • Display: analog
  • Type: process, industrial
  • Other characteristics: stainless steel
