ROXY 200

Article: 00008444

Liquid dispensing system / volumetric

Target:

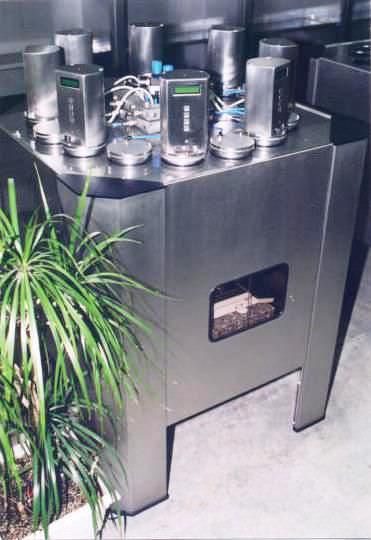

This small, very compact (1 m² on the floor) and absolutely noiseless equipment, suits perfectly a laboratory environment, with «self-service» type utilization. It is especially dedicated to the formulation trials involving difficult, viscous, sticky... raw materials or requiring particular storage conditions.

Used scales:
Different types of scales can be used, with 1 mg or 0.1 mg accuracy.

Containers used for the compounds:
Any beaker compatible with the range of use of the scales. The beaker is put manually on the scales tray, after reading of the identification barcode label printed by COMPO-MANAGER software.

Organization & configuration:
ROXY-200 integrates the storage containers of the 32 (maximum) liquid or pasty raw materials are set on a ring around the machine vertical axis, which as well as the 32 corresponding VDS-201 dispensing devices.

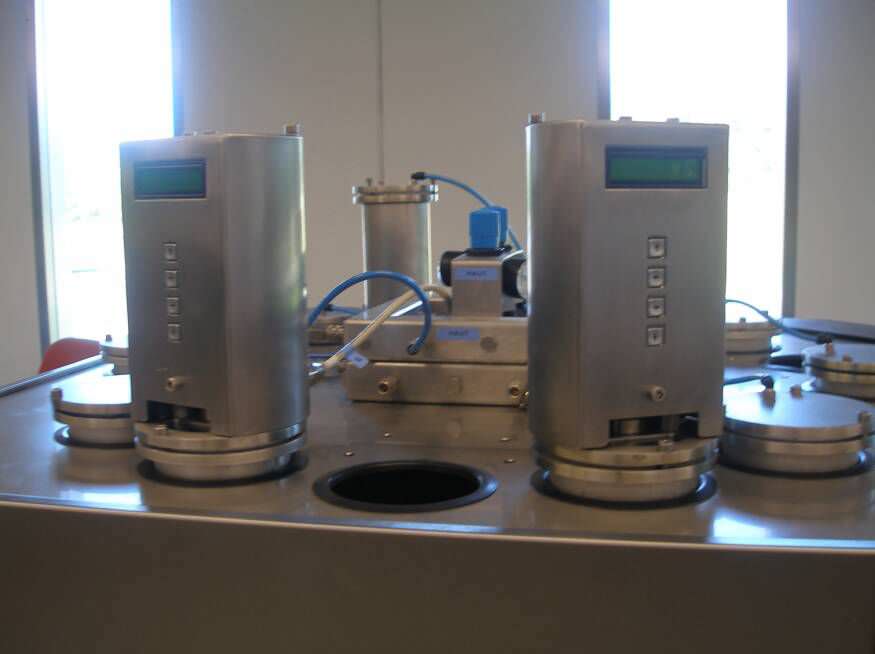

The VDS-201 dispensing control device, the scales and the compound beaker can turn around this same axis, allowing successive dispensing according to the formula.
ROXY-200 can be integrated as a module of a ROXANE-K machine.

Raw material storage:
The storage containers, in stainless steel, have various capacities, and a cylindrical shape. They can receive the following equipment:
? Pressurization, at a controlled pressure,
? Heating, at a requested and regulated temperature,
? Stirring, at a requested and regulated speed.
Each container is linked to a VDS-201 dispensing device.
These raw materials are managed by COMPO-MANAGER (continuous inventory, lots and expiry dates management,...).

Specifications

  • Applications: liquid
  • Type: volumetric
