Implement Industry Ideas

24 V, max. 2200 kg, EN12453 | K series

Article: 00009001

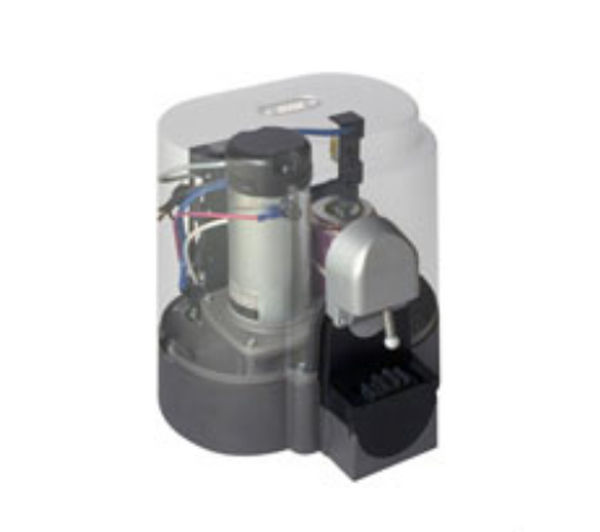

Sliding gate automation

K units are a series of operating devices, with KS control boards builded inside, created for automatic movement of sliding doors and gates weighing up to 2200Kg/4846lbs. They are available in various versions, for easy and functional use anywhere from detached homes or apartment blocks to large company premises.
They are equipped with gradual start, electronic adjustment of the force, electronic brake (as standard features) and with OPTICAL ENCODER in the PLUS version
The ENCODER, which is included in the PLUS version, indicates when the gate comes into contact with an obstacle, and reverses the movement (as required by new European regulations EN12453, EN12445) without the need to fit edge sensors.
In the version K800 24V, the low voltage motor combined with the encoder also allows slow-down of the gate when shutting, giving the movement a still greater sense of safety and fluidity.
In the event of a power cut your gate will not remain locked because using the customised key provided, you will be able to open it with ease.
K800 24V version with the buffer batterie mean that black-outs will pass totally unnoticed. In fact it is possible to do up to 150 cycles during the black out period on a 3mt long sliding gate.

Specifications

  • Type: sliding gate
