max. 500 bar, max. 397 kW, max. 5 300 rpm | HMR-02 series

Article: 00009407

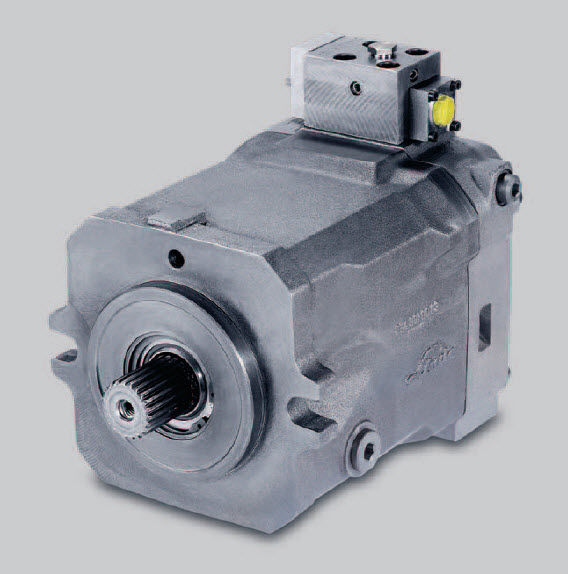

Axial piston hydraulic motor / variable-displacement

Product advantages
steady low speed behaviour
high starting torque
large conversion range
PTO Through-Drive Motor
compact design
high power density
high reliability
long service life
dynamic response
Design characteristics
axial piston motor in swash plate design for high pressure open and closed loop systems
optimised starting and low speed behaviour
purge valves for circuit and case flushing in closed loop optional
internal system pressure control, no external piping required
brake pressure shut off for closed loop
high pressure relief valves available
through shaft with free shaft end or with coupling flange
SAE high pressure connection ports radial or axial
SAE mounting flange with ANSI or SAE spline shaft
plug-in version optional
speed sensor optional
counter balance valve optional
Maximum displacement override
pneumatic
hydraulic (high and low pressure)
electric

Specifications

  • Technology: axial piston
  • Other characteristics: variable-displacement
  • Torque: Min.: 218 Nm (160.79 ft.lb)
  • Rotational speed: Min.: 2400 rpm (15079.64 rad.min-1)
  • Pressure: 420 bar (6091.58 psi)
