Bevel gear reducers

Huco Engineering Industries

  • Bevel gear reducer / orthogonal / high-rigidity / high-voltage substation
  • Bevel gear reducer / orthogonal / high-rigidity / high-voltage substation

L-Box, T-Box series

Article: 00012780

Bevel gear reducer / orthogonal / high-rigidity / high-voltage substation

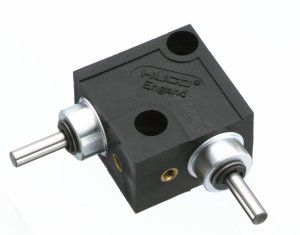

Huco L-Box miniaturised right-angle drives offer two alternative specifications to meet the need for a standard component with differing levels of application and economy. Both models feature two counterbored clearance holes for conventional chassis mounting and a tapped insert below each shaft for vertical mounting. Both models hava a 1:1 ratio and a maximum backlash of 2°. Gear cases are injection moulded in filled Nylon 66 for low moisture take-up, low thermal expansion and high rigidity.

Huco T-Box miniaturised right-angle drives offer two ratios and three shaft configurations. Features include:
* Straight cut bevel gears, case hardened and cross-pinned to shafts
* Double shielded carbon steel deep groove input bearings
* Aluminium carriers precisely size the sintered output bearings and maximise heat dissipation
* Gear case injection moulded in filled Nylon 66 for low moisture take-up, low thermal expansion and high rigidity
* Ground steel shafts throughout, treated for hardness, strength and corrosion resistance.
* Lifetime lubrication enhanced by grease control ribs.

Specifications

  • Type: bevel
  • Shaft orientation: orthogonal
  • Performance: high-rigidity
  • Product applications: high-voltage substation
  • Torque: Min.: 0.11 Nm (0.08 ft.lb)
  • Rotational speed: 1500 rpm (9424.78 rad.min-1)

Other items

In this category | In this category, (Huco Engineering Industries)

Leave request for price calculation right now, we will send you best prices.
