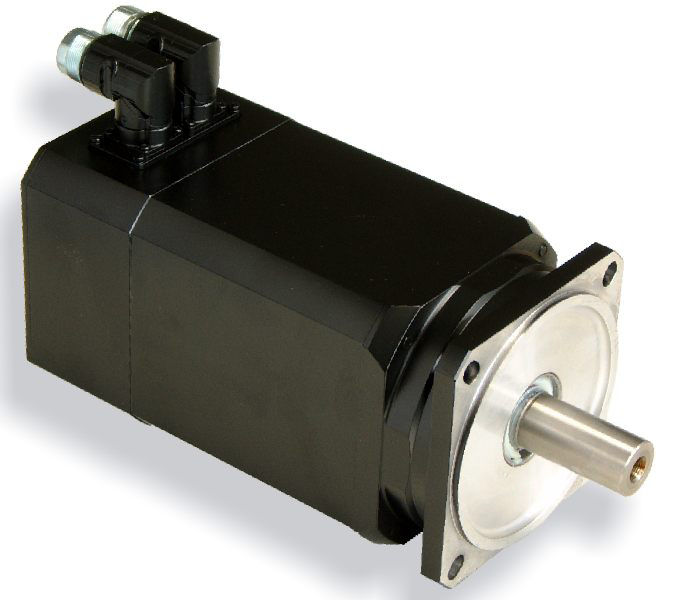

AC electric servo-motor / brushless / compact

AC Servo Motors are products which are brushless with resolver technology. They have neodym magnets with high power density and integrated resolver measuring system. The AC Servo Motors are compact in design and have the highest dynamics. The Motors have a 0,1 to 93 Nm capacity.

Specifications

  • Type: brushless, AC
  • Features: compact
  • Voltage: 400 V, 230 V
  • Torque: Min.: 0.09 Nm (0.07 ft.lb)
  • Power: Min.: 120 W (0.16 hp)
  • Rotational speed: 2000 rpm (12566.37 rad.min-1), 3000 rpm (18849.56 rad.min-1), 6000 rpm (37699.11 rad.min-1), 3400 rpm (21362.83 rad.min-1)
