Brushless AC servo-motors

HDT Srl

  • AC electric servo-motor / brushless / permanent magnet

B05

Article: 00014386

AC electric servo-motor / brushless / permanent magnet

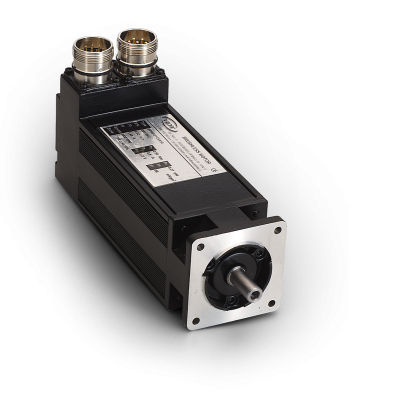

The B05, manufactured by HDT srl, is a brushless AC electric servo-motor which integrates enviable dimension and torque as well as dimension and power ratios with a compact construction. The frame size measures 55mm and it can cover torque amounts from 0.48 Nm to 1.1 Nm depending on the length of the stator pack.

This device is used for industrial automation applications that need the highest axial control performance. The feedback is received by the resolver for windings at 230 V and by encoder and Hall probes for the low voltage controllable versions.

The brake can come in a version with permanent magnet emergency with no backlash. This device also comes with extra accessories.

Specifications

  • Type: AC, brushless
  • Technology: permanent magnet
  • Power: Min.: 153 W (0.21 hp)
