  • Brushless electric servo-motor / AC / with integrated movement controller

SMA series

Article: 00014365

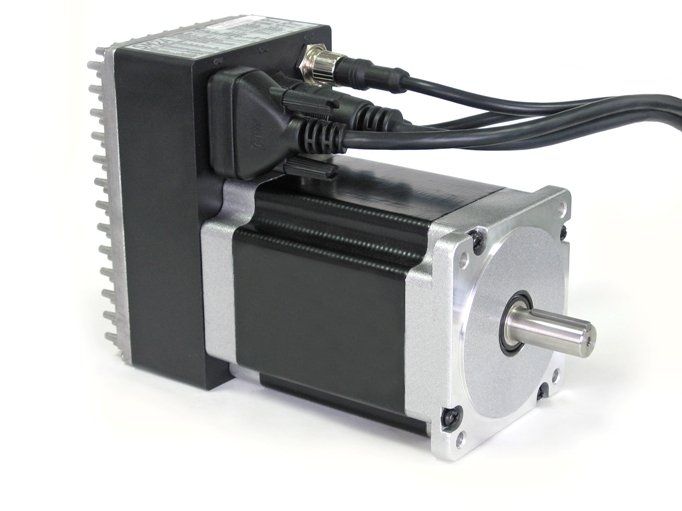

Brushless electric servo-motor / AC / with integrated movement controller

The fieldbus drives with integrated motor of the SM2A series with c0300 (Canopen) or c0400 (Modbus) firmware, are high-performance devices, consisting of a Full Digital drive based on the precise pwm technology embedded in the f4d2 firmware to control the sinusoidal current, a 50 poles high torque motor and an optional encoder to control the torque, velocity and position of the motor in open as well as in closed loop for less noise, less heating, smooth motions and energy saving. The SM2A drives are easy to install in CANBus or Serial networks as slave unit and easy to configure thanks to PC Windows interface SDM-Monitor, and are available in a wide power range with 3.4? flange (86 mm) motors. Besides compactness and power, the SM2A series offers maximum versatility and reliability, and a remarkable saving of wiring and electrical switchboards. With the hardware resources available in the different drive versions, along with the advanced control mode implementations in the real time power module you can create and test your applications fast and easy.

Specifications

  • Type: brushless, AC
  • Other characteristics: with integrated movement controller
