  • Single-roll lump breaker / for powders / horizontal

AGR-BREAKER

Article: 00016131

Single-roll lump breaker / for powders / horizontal

The Lump Breaker model AGR-BREAKER allows to crush the lumps that could form in the materials during the production process or the handling of powders.

The Lump Breaker Systems are particularly suitable for hygroscopic materials or those that tend to clog, and thanks to their versatility can be used in all industrial sectors.

It is characterized by a self-cleaning design with very small dimensions and can also be mounted within existing systems or systems for emptying (bags, drums and Big-Bag), or usually located immediately above vessel, filter dryers, centrifuges, mixers and generally on the process machine.

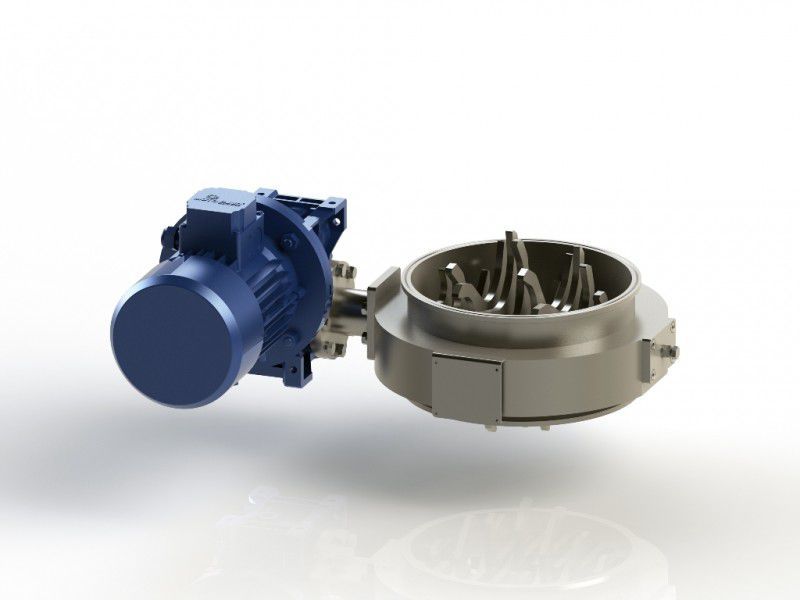

The Lump Breaker has a stainless steel central body with circular cross section where are the shaft with the blades for the crushing of the product and the grid of contrast.

At the central body of the Lump Breaker are connected two flanges, an upper for the inlet of the rough material and a lower flange for the evacuation of the crushed product.

The breaking of lumps takes place through the rotation of special blades within a grid of contrast moved by means of a gearmotor.

For safety reason, the Lump Breaker is equipped with inductive sensors that allow the start the machine only when the installation configuration is correct;

The Lump Breaker is manufactured in accordance with the Machinery Directive 2006/42/EC and upon request it can be manufactured for installation in ATEX zones.

There is also a reinforced version of the Lump Breaker with a square base that is suitable for all applications where the product requires a greater crushing force.

Specifications

  • Technology: single-roll
  • Material: for powders
  • Orientation: horizontal
