Busbars

Paul Vahle GmbH & Co. KG

  • Multipolar conductor rail
  • Multipolar conductor rail
  • Multipolar conductor rail
  • Multipolar conductor rail
  • Multipolar conductor rail

Article: 00016966

Multipolar conductor rail

Insulated Conductor System U10

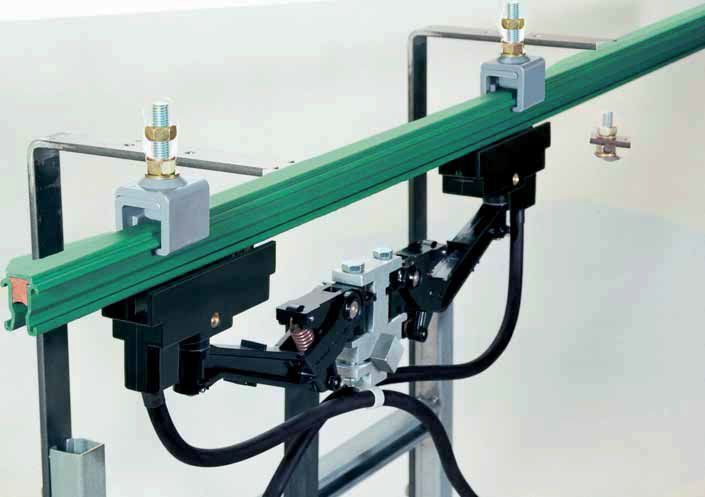

The insulated conductor system U 10 is a conductor rail used for supplying main power and signal current, as well as data transmission (Powercom), especially for monorail systems. Sliprings and multipole slipring units also present no problems.
Capacity: 10 - 100 A.


Insulated conductor system FABA 100

The standard color of our insulated conductor system FABA 100 is orange. The poles can be chosen user-defined. All conductor systems are touch protected under IP2X.
Our 3 - and 5 - meter standard sections guarantee perfect handling and quick, convenient one-man installation.
A flexible modular design with plug-in or bolted joints, end- or line-feeds, isolating sections and compact transitions enable a fast and comfortable adaptation to changed routes and control requirements.


Insulated Conductor System U15, U25, U35

U15, U25, U35 are single-phase, insulated conductor rails for use in cranes (overhead cranes, loading bridges, etc.), monorail systems, AS/RS systems, elevator systems, sliding doors, data and signal transmission, amusement rides, high-voltage installations, conductor rail trench systems, and many more, for a current consumption of 10 to 1250 A.


Insulated conductor systems U20, U30, U40

U20, U30, U40 are single-phase, insulated conductor rails for the range from 60 to 1000 A. The rails are suitable for supplying power for a wide range of applications, e.g., cranes, transport installations with several lifting and conveying devices, amusement rides, and many more.
Model article number: VAHLE Isolierte Stromschienen

Specifications

  • Electrical characteristics: multipolar
  • Current: Min.: 10 A
