Chamfering machines

Assfalg GmbH

  • Desk chamfering machine / stationary / electric / for sheet metal
  • Desk chamfering machine / stationary / electric / for sheet metal
  • Desk chamfering machine / stationary / electric / for sheet metal
  • Desk chamfering machine / stationary / electric / for sheet metal

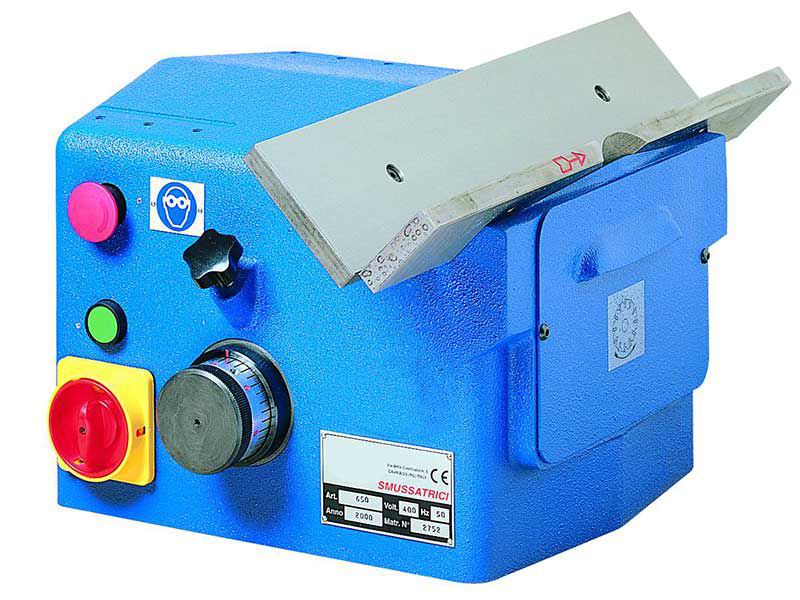

ASO 650 / ASO 650-WSL

Article: 00023021

Desk chamfering machine / stationary / electric / for sheet metal

Deburring and chamfering of big work pieces is an easy job. Rounding of edges in use with radius inserts is also possible. Speed control is very useful when processing aluminum or stainless steel.

Professional advantages:
- Axial cutter head adjustment for utilization of inserts by small chamfers
- Chamfer adjustment by micrometer button
- For continuous operation

Application:
- Clean and burr-free chamfering
- Suitable for sturdy continuous operation
- For preparing weld seams
- With short or thin work pieces below 5 mm, the guide rails can be turned and used with a 2 mm cutting gap

Options:
- Automatic feed
- Radius cutting inserts R1 - 10 mm

Features:
- Sturdy cast iron construction with swarf drawer
- Wear-resistant, hardened and ground guide rails
- Precise chamfer adjustment by micrometer button
- Wide variety of different cutting inserts for various materials
- Long useful life due to sturdy square cutting inserts and circumferential cutting

Delivery contents:
- Allen key 4 mm
- Side milling cutter SP 12 (only with ASO 650)
- Side milling cutter SP 15 (only with ASO 650-WSL)
- Electric cable without plug
- Operating instructions

Further accessories can be found in our Accessory Catalogue.

Specifications

  • Type: desk, stationary
  • Operation: electric
  • Applications: for sheet metal, for thin workpieces, weld preparation
  • Other characteristics: straight edges
