Collets

SYSTEM 3R

  • Dead length collet chuck / milling / 4-jaw

3Refix

Article: 00026210

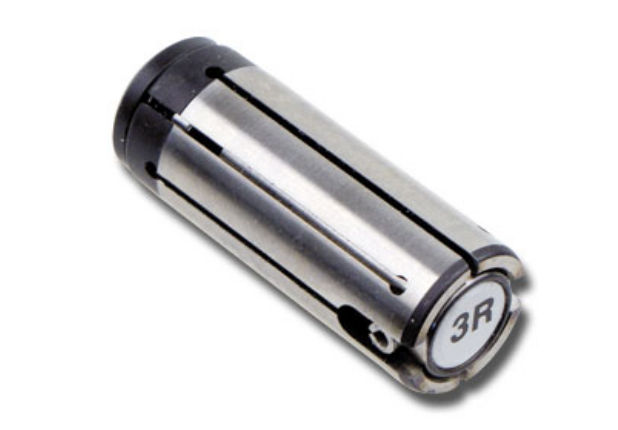

Dead length collet chuck / milling / 4-jaw

Increased productivity
need not mean heavy investments in new machines.

3Refix is remarkably simple way to lay a solid foundation from which to view the future with confidence ? tool up without indication and cut your production costs!

3Refix technology is based on a modular hole pattern with 100x100 mm pitch and 20 mm diameter reference holes. The reference tables have clearly-marked reference holes ? A1, A2, B1, B2 etc ? and every accessory has two 20 mm diameter holes, which pick up the references from the table. The R0-hole gives the X/Y-position and the R1-hole gives the angle relative to the axes of the machine. This makes it possible to set up the workpiece without the need for alignment and gauging afterwards. So 3Refix accessories provide an unmistakable and fixed position with known references.

The accessories in the 3Refix range usually have a reference height of 30 mm, among other things to allow machining straight through the workpiece. The design also allows a flush pot to be pushed in under the workpiece during EDM machining.
The full effect of 3Refix technology is attained by consistent application with general systemization and standardization of all machine tables and accessories. System 3R can supply reference tables for practically all types and sizes of machines ? reference tables that give a distinct interface between machine table and auxiliary tool.

Specifications

  • Type: dead length
  • Function: milling
  • Number of jaws: 4-jaw
