Conductive level switches

UTECO ABEE

  • Conductive level switch / for liquids / multi-point
  • Conductive level switch / for liquids / multi-point

Article: 00028225

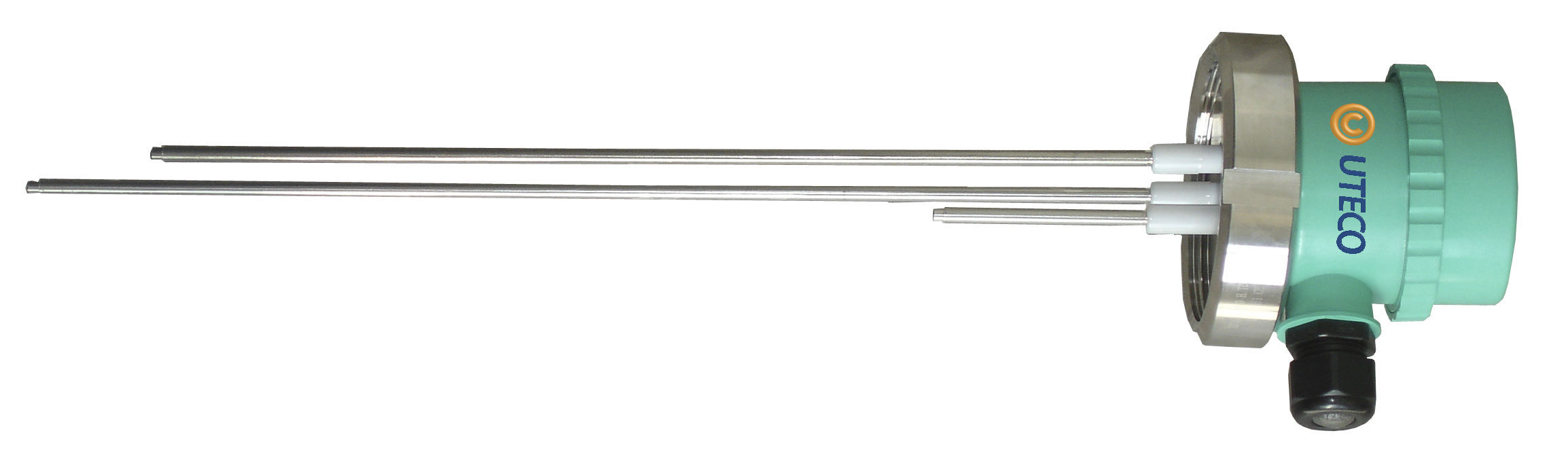

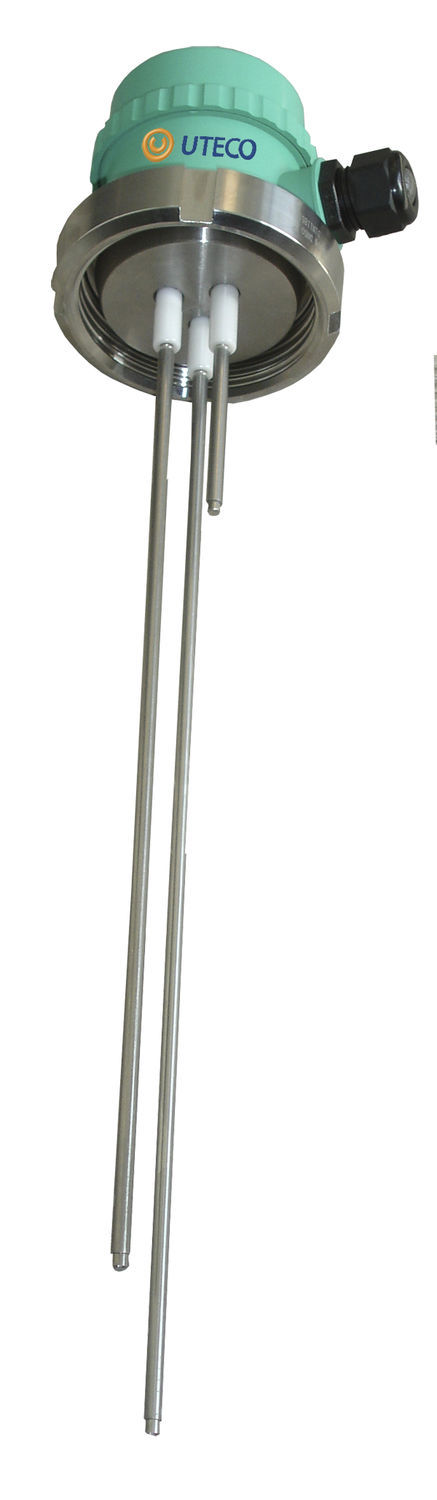

Conductive level switch / for liquids / multi-point

This series of conductive level sensors is utilized for the detection of conductive limit value. They have a rod diameter of 4mm with 1, 2, 3 or 4 rod electrodes. The length varies between 500 mm (1 rod electrode) and 1,000 mm (2, 3, 4 rod electrodes) and the process connection is R 1/2 BSP (1 rod electrode) or R 1 1/2 BSP (2, 3, 4 rod electrodes).

The level sensors are made from stainless steel 14571 with either a PFA or OVC insulation rod electrode. They operate at a temperature range of 0° C to 200° C and have a terminal box constructed of Form B, IP65 protected aluminum die-casting or plastic to IP65 norms.

Varying technical characteristics, such as connections, number of electrodes and length, can be supplied upon request. Electronic unit amplifiers can also be supplied upon request.

Specifications

  • Technology: conductive
  • Measured material: for liquids
  • Switching points: multi-point
