  • Conductive level switch / for liquids / stainless steel / compact
  • Conductive level switch / for liquids / stainless steel / compact

MLR420-1

Article: 00028184

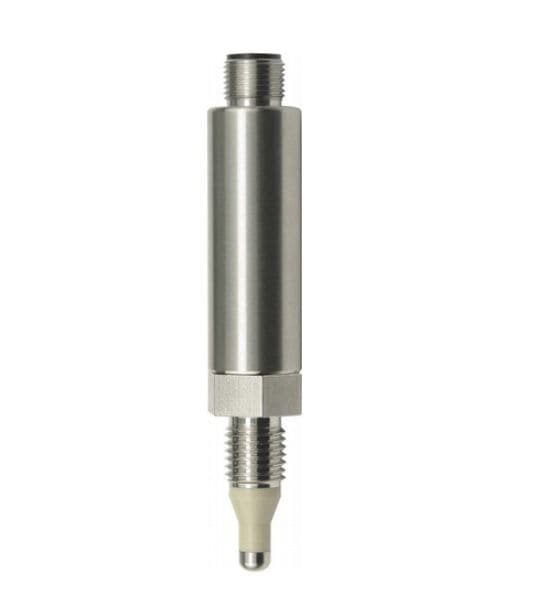

Conductive level switch / for liquids / stainless steel / compact

1 point level with switching output
?Process connection GHMadapt M12x1.5
?Round case, SS-type Ø 18 mm
?Flexible mounting: compact version
?No moving parts in the medium
?Sensitivity programmable
?Parameters programmable with GHMwarevia USB programming adapter EYY120
?Isolation between sensor, case / supply, output
Compact version
Supply voltage:18..30 V DC
Power consumption: CE-conformity:EN 61326:05/2007
Ambient conditions
Ambient temperature:-20..+70 °C
Climatic class:EN 60068-2-38
Vibration class:EN 60068-2-6, GL test2
Certifications
EHEDG certificate no.:28/2011
Input:1
Response time:0.05..10 s, programmable
Output:NO / NC programmable
Electronic:transistor PNP, max. 30 V DC / 100 mA
Electrical connection :M12 plug
Isolation:sensor system, case / supply, output
Case:round case, SS-type Ø 18
Material:1.4305
Protection class:IP67 / IP69K
Electrode:1
Electrode length:4..200 mm

Specifications

  • Technology: conductive
  • Measured material: for liquids
  • Other characteristics: stainless steel, compact, programmable
  • Protection level: IP67
  • Applications: for hygienic applications
  • Process pressure: Min.: -1 bar (-14.5 psi)
  • Process temperature: Min.: -20 °C (-4 °F)
