  • RJ45 connector / Ethernet / M12 / field-attachable

876, 825 series

Article: 00029550

RJ45 connector / Ethernet / M12 / field-attachable

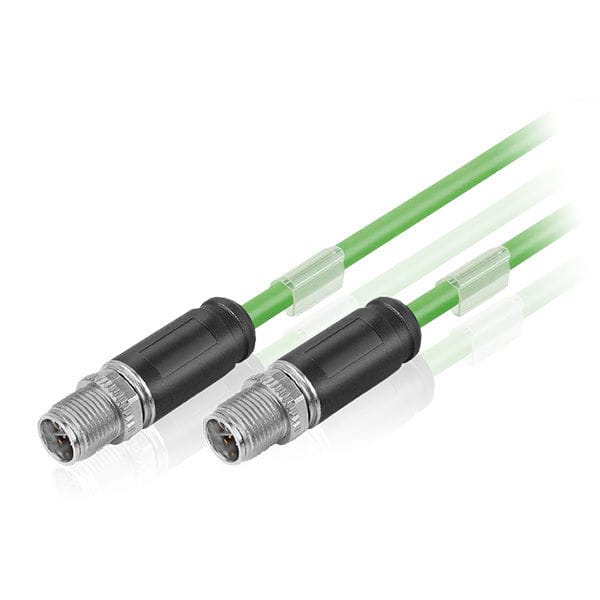

Series 876 & 825 X-Coded connectors are ideal for industrial network applications in harsh environments. It is possible to transmit up to 10 Gbps and the X-coding design conforms to IEC 61076-2-109. Overmolded male M12 double-ended cordsets and male M12 to male RJ45 CAT6A cordsets are currently available. All cordsets are available in standard 2, 5 and 10 meter lengths.

10 Gbps Ethernet acc. to IEEE 802.3 CAT 6A
Class EA
ISO/IEC 11801
DIN EN 50173-1
Field-Attachable Cable Outlet 5.5 - 9mm
ISO/IEC 11801
Overmolded cables available
PoE+ acc. to IEEE 802.3at

Specifications

  • Type: RJ45, Ethernet
  • Size: M12
  • Other characteristics: field-attachable, ISO, category 6a, DIN, IEC
  • Product applications: for sensors
  • Domain: network
  • Current: 0.5 A
  • Voltage: Min.: 50 V
  • Data rate: 10 GB/s
