TSR 3DXP, TSR 6DXP

Article: 00035786

Shock data-logger / USB / triaxial

High shock, standalone data logger with built-in sensors
Microprocessor, power, signal conditioning, 12-bit ADC
Easy to configure with PC, set to record unmonitored
Transient capture or continuous recording

High Performance
Sampling rates up to 75 ksps/ch
Shock rated to 10000 g survivable
Record milliseconds to months; stored in memory
Date, time and temperature stamp for each event

Two Models - TSR Quick Reference Guide

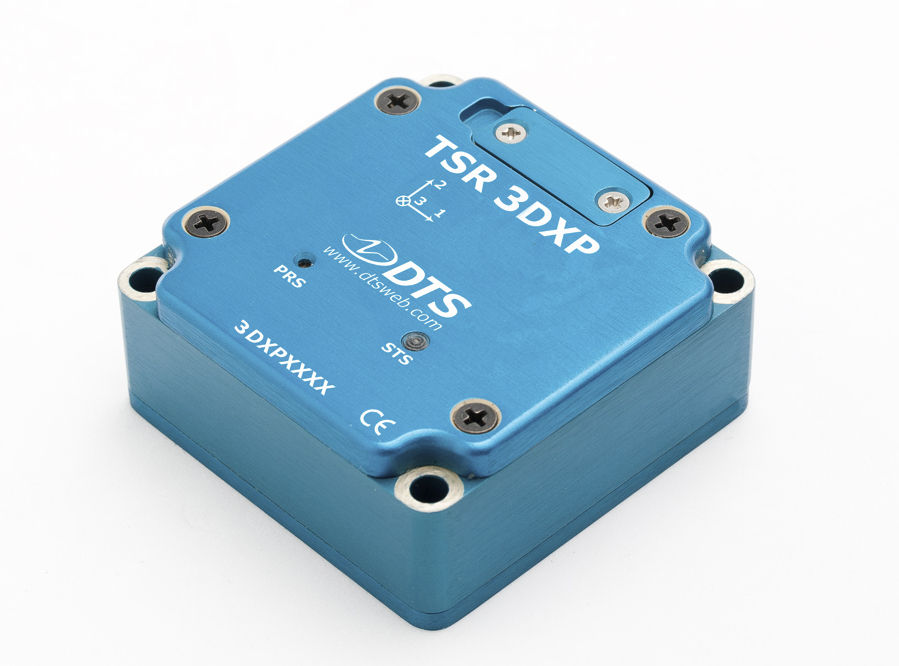

TSR 3DXP standalone shock recorder
Triaxial accelerometer: ±1250 or 6000 g
Pressure sensor: 100 psia

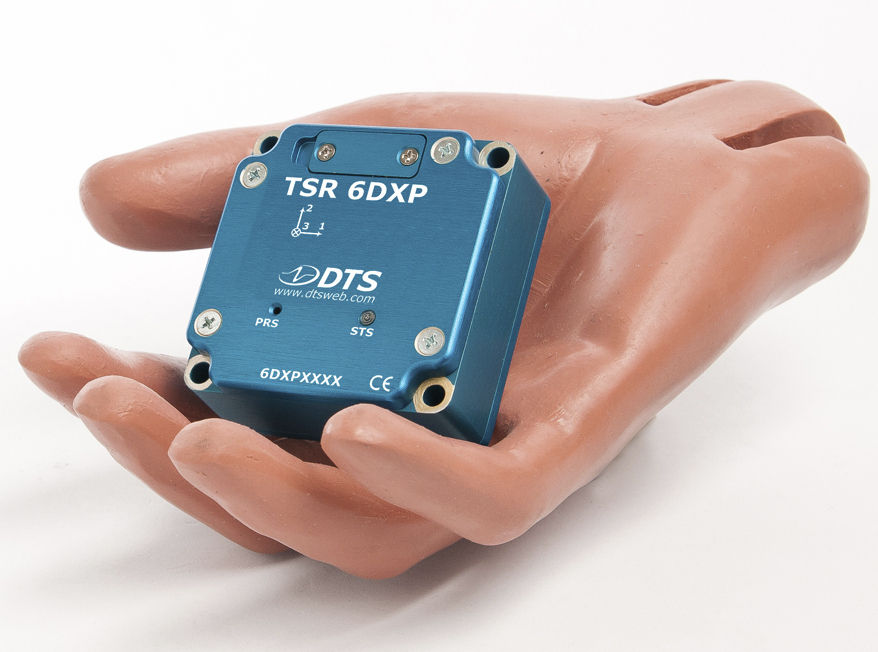

TSR 6DXP standalone shock recorder
Triaxial accelerometer: ±1250 or 6000 g
Pressure sensor: 100 psia
Triaxial angular rate sensor: 0.3 Hz to 5 kHz

Software that's fast and easy
USB download
Real-time, logging, viewing and exporting

Specifications

  • Measured physical value: shock
  • Connector type: USB
  • Other characteristics: triaxial
