Article: 00036481

Floating decanter / horizontal / industrial

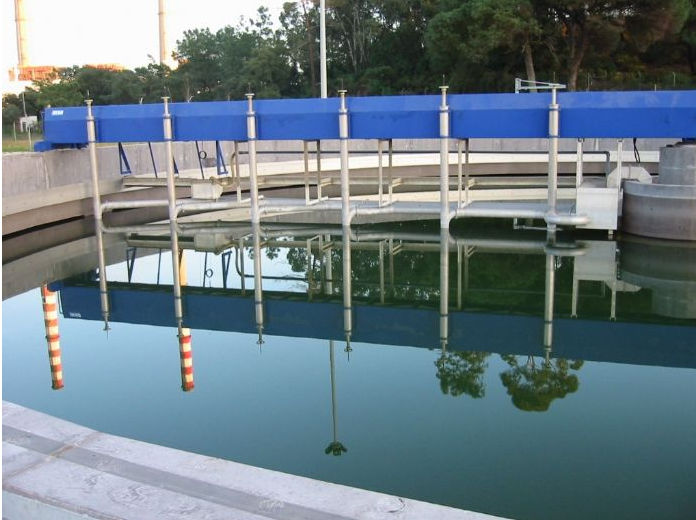

The decanting system is based on a radial or diametral swing bridge, its function is to collect the sludge and floating elements contained in a circular decanter.

They have peripheral or central power mechanism and a bottom scraper in the shape of a spiral or fish bone.

The decanting system is made up of the following parts:

Footbridge- laminated steel footbridge, with a steel tube handrail on both sides and a galvanized wire mesh or a footbridge built from folded sheets of metal high enough to serve as a handrail (box girder).
Motorised unit- to move the bridge. There are two wheels, one of which is motorised, assembled on an F-114 steel shaft. Includes ball bearings.
Bottom scraper- Carbon or stainless steel, with rubber on the bottom for the collection of decanted sludge. The scraper is supported and maintained at an established distance from the bottom of the decanter using adjustable wires attached to the footbridge.
Hood deflector- Carbon or stainless steel, it settles the water and uniformly distributes it throughout the decanter.

Specifications

  • Type: floating
  • Orientation: horizontal
  • Applications: industrial
