Diesel generator sets

KOHLER POWER SYSTEMS

  • Diesel generator set / three-phase / 50 Hz / for marine applications

175EFOZDJ

Article: 00037233

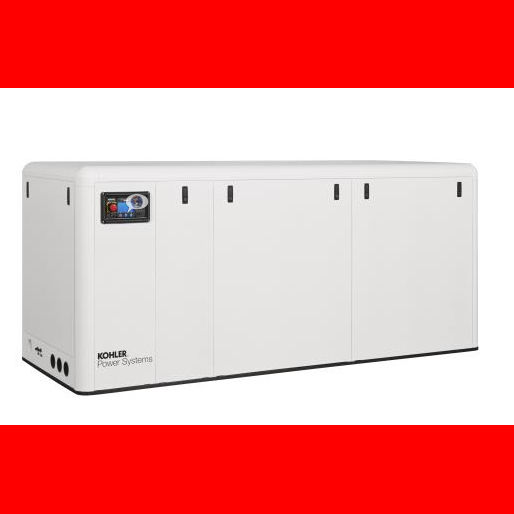

Diesel generator set / three-phase / 50 Hz / for marine applications

Diesel Generators / 175EFOZDJ

Engine features:

Engine is Environmental Protection Agency (EPA) Marine Tier III compliant
One-side serviceability of fuel system, lubrication system, and air cleaner
PTO options: 12- or 24-volt electric clutch


Generator features:

Prime power rated
Superior Kohler Fast-Response(R) PMG excitation system
Class H insulation
12-lead reconnectable alternator
The generator complies with NEMA MG1, IEEE, and ANSI standards for temperature rise and motor starting.
The alternator uses a permanent-magnet, Fast-Response® excitation system.
The alternator has a two-thirds pitch stator and skewed rotor.
The generator has a solid-state, volts-per-hertz voltage regulator.
The brushless, synchronous generator is broadrange and reconnectable
The windings are vacuum-impregnated windings with epoxy varnish for dependability and long life.
The generator is capable of sustained line-to-neutral short-circuit current up to 300% of the rated current for up to 2 seconds.

Specifications

  • Motor type: diesel
  • Phase: three-phase
  • Frequency: 50 Hz
  • Applications: for marine applications
  • Power in kVA: 175 kW (234.68 hp)
