Differential pressure flow meters

Hauck

  • Differential-pressure flow meter / orifice / for gas / in-line

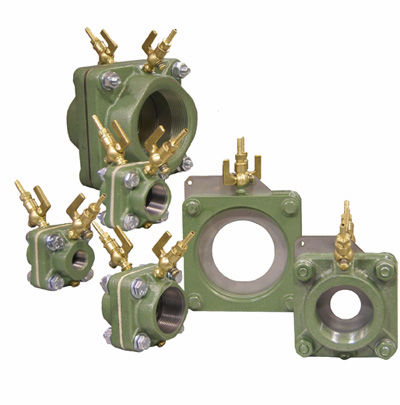

OMG series

Article: 00037386

Differential-pressure flow meter / orifice / for gas / in-line

The Hauck OMG series allows simple measurement of air and gas flow in industrial combustion systems. The OMG is designed for use in the most demanding and harsh installations. A wide selection of connection options and an extensive variety of orifice bore sizes make the OMG ideal for individual burner metering and total system metering. For example, on large multi-burner installations, an OMG can be installed at each burner's air and gas connection and in the main air header or gas manifold for the furnace.

The heavy-duty construction of the OMG series allows pressure up to 25 psig for the 3/8" to 4" size. The 6" through 28" sizes are suitable for 10 psig service. All OMG components are suitable for temperatures up to 250°F. Higher temperature materials are available upon request. factory for higher pressure applications.

OMG assemblies not only provide accurate flow measurement, but also offer the convenience of serving as an auxiliary union connection in the piping. An OMG may be installed in any position provided the location chosen ensures easy access to both pressure cocks and sufficient clearance exists to remove the orifice plate. For maximum accuracy, use at least 6 pipe diameters upstream and 4 pipe diameters downstream of the OMG.

Specifications

  • Technology: differential-pressure, orifice
  • Fluid: for gas
  • Mounting: in-line
