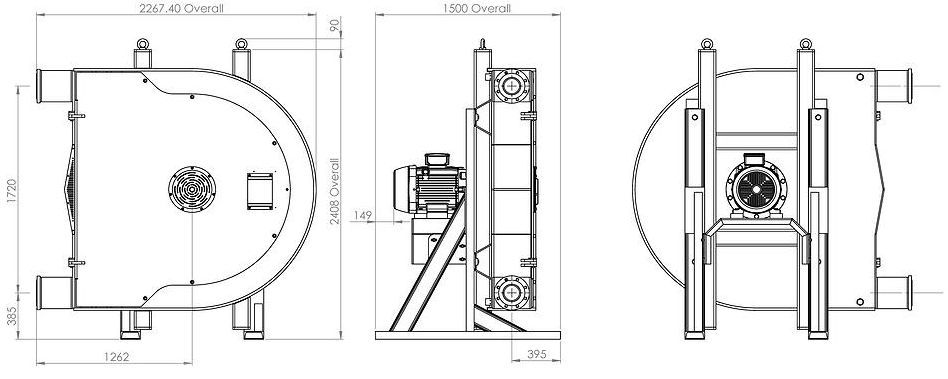

ALX150

Article: 00037864

Peristaltic pump / dosing / high-pressure / transfer

- Volumetric flow at 99.5 %, from 0,5 l/h to 150 m³/h
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 15 bar
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :
Typical applications :

WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams

MINERAL PROCESSING : sludge with viscosity up to 60 000 Cps, clay up to 800 g/l, particle size 30mm, lead sulfate, pyrite, SABX, cyanide, various acids

CERAMIC : ceramic glaze, mould filling, filter press feeding

BUILDING : fibrous mortar, plaster, light concrete, cement flooring

CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents

FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.

PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating

PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing

AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals

Specifications

  • Type: peristaltic
  • Applications: dosing, high-pressure, transfer
  • Media: multi-fluid
  • Flow rate: Min.: 35 m³/h (1236.01 ft³/h)
  • Pressure: Min.: 0 bar (0 psi)
  • Power: Min.: 22 kW (29.5 hp)
