Distribution transformers, transformer stations

BENDER

  • Isolation transformer / laminated / single-phase / for lighting

ESL0107 series

Article: 00038486

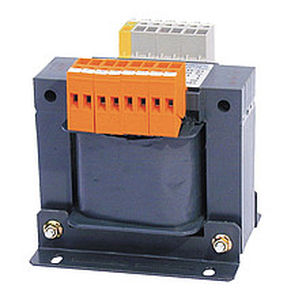

Isolation transformer / laminated / single-phase / for lighting

The ESL0107 Series features transformers which reinforced insulation. The transformers comply with the requirements of the IEC 61558-2 -6 / DIN EN 61558-2-6 (VDE 0570-1). They also contain tapping points for fine-step voltage adaption particularly on both primary and secondary sides and thus, meeting the requisites for power supplies of the operating theatre luminaires in Group 2 rooms.

These units also contain winding that is isolated. An electrostatic screen is installed in order to minimize various electrical deterrents. It is connected to an insulated terminal for the purpose of connecting it to the potential bonding. These also have fixing angles that are isolated from the transformer core to be able to secure isolated installation.

Specifications

  • Configuration: laminated
  • Electrical characteristics: single-phase
  • Applications: for lighting
  • Other characteristics: isolation
  • Current: Min.: 0.6 A
  • Electric power: Min.: 0.12 kVA (0.16 hp)
