ESP T/R

Article: 00038900

Rectifier transformer / vacuum / custom

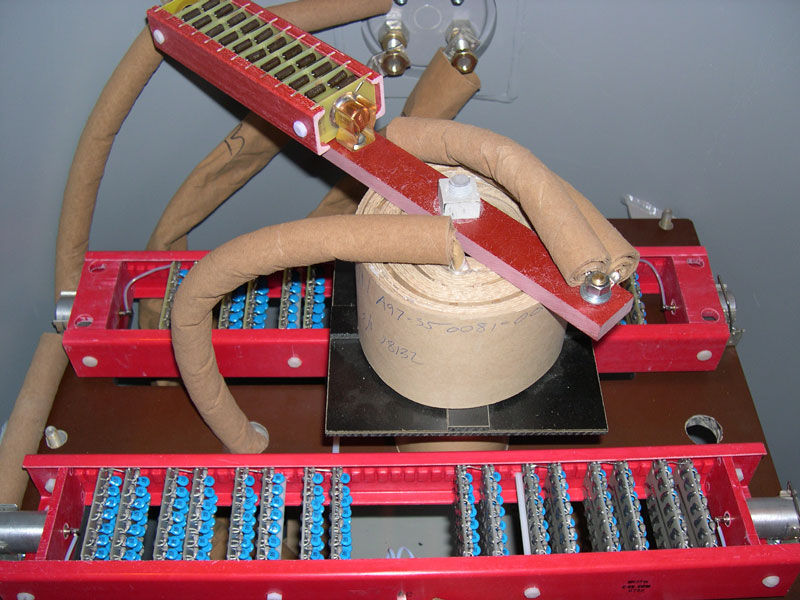

Transformer Rectifier Sets
Conventional ESP T/R Sets
T/R sets offer conventional 60Hz ESP power supplies with uncompromising quality, ruggedness, and reliability. Based on the original Westinghouse design, our T/R sets provide dependable low maintenance service for decades. Every T/R set is built utilizing only copper wire on both the primary and secondary windings for maximum performance and minimum heat generation inside the tank. The heavy duty tanks provide superior mechanical strength and full vacuum processing capabilities up to 15 PSIG.

Superior Design Center

The ESP product design center provides either standard or custom T/R sizing. The standard designs provide a low cost option with superior T/R performance. The custom designs provide our customers with exact fit, form and function of any T/R set. We will design a T/R set that mounts in your existing available space as well as aligns the output bushing(s) to the existing bus ducts. The customizations provides for a low cost installation as the new T/R set will not require any field modifications to existing stands, bus ducts, cable terminations, etc.

Transformer Rectifier Sets features include:

Outputs 36-75 kV average
100 ? 3000 mA Outputs
Proven Westinghouse Design
Single or Dual Bushing
External and Internal Ground Switch
Current Limiting Reactors
100% Copper-Wound transformer
100% testing on all Transformers
Heavy Duty Diode Stacks
Standard Sizes
Custom Sizes

Specifications

  • Type: rectifier
  • Configuration: vacuum
  • Other characteristics: custom
  • Current: Min.: 0.1 A
