IBFA

Article: 00048587

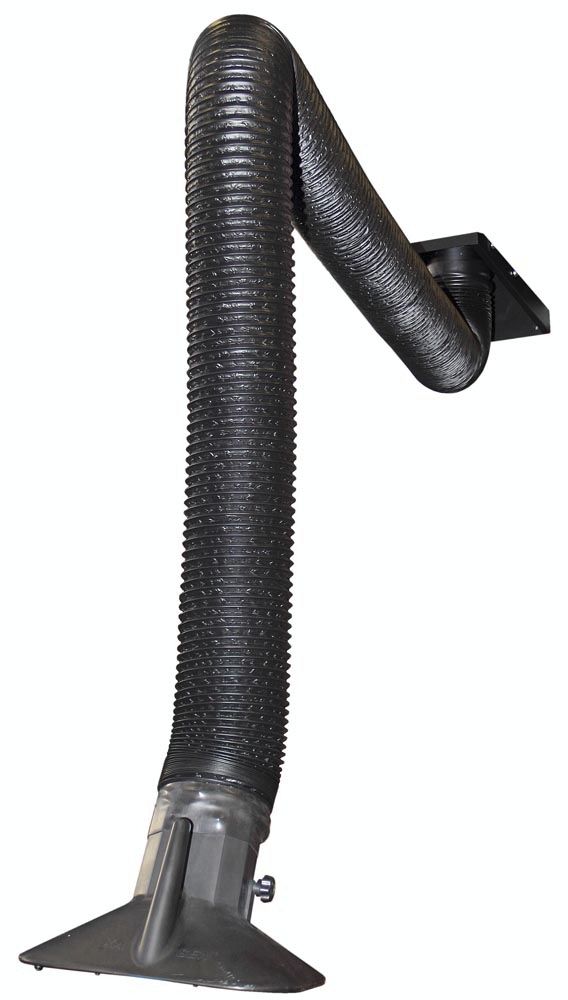

Fixed extraction arm / flexible / for welding fumes / with hood

The new IBF Armoflex series thanks to used materials and to his innovative project allows to operator to have an high maneuverability and a stable positioning, guaranteed by a Belleville washer which sustains the arm.
The internal supporting structure is realized with reinforced steel billet pipes and 6061 aluminum alloy components after CNC worked for T6 in physical state, then anodized to ensure durability despite continuous exposure to fumes.
The flexible covering pipe is an multilayered PVC to guarantee the protection from eventual sparks and a high temperature resistance (max 40°C).
The extraction hood has a square profile for a maximum efficiency of extraction, complete of manual damper for the airflow calibration, anti-intrusion grille and bridge handle.

Specifications

  • Portability: fixed
  • Type: flexible
  • Applications: for welding fumes
  • Other characteristics: with hood
  • Length: Min.: 2 m (6' 7")
  • Diameter: 160 mm
