Fans for electronics

ROSENBERG

  • Centrifugal fan / locking / backward curved / IP55

EHN

Article: 00048903

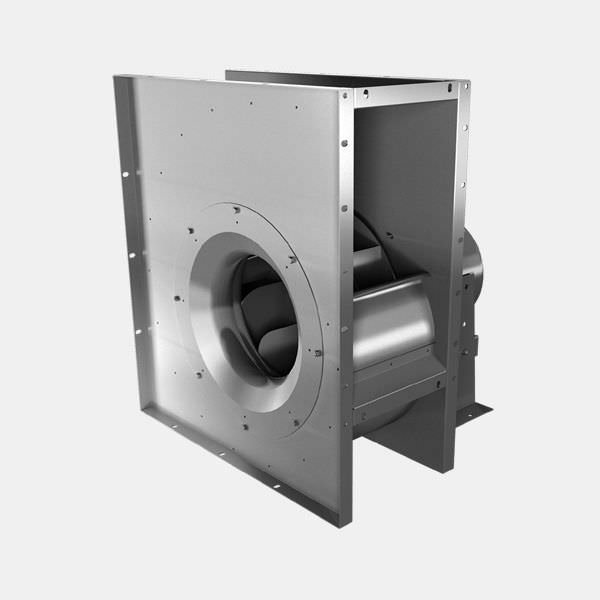

Centrifugal fan / locking / backward curved / IP55

Centrifugal fans with IEC standard motor ; backward curved (Type: EHN...)

Properties

flow rates up to 21,000 m³/h
size: 200 - 630 mm (impeller diameter)
casing made of galvanised sheet steel
casing position: LG or RD
IEC standard motor, IP55, thermal class F
backward curved impellers
terminal box directly on motor, IP55
motor protection through PTC thermistors

Casing

The casing is made of galvanised sheet steel. The side parts and the spiral plate are connected to each other by rivets. With size 200, the motors are flange-mounted directly. From size 225, the motors are mounted on a console. A plastic coating is available upon request.
Impellers
The impellers of the EHN ... types are produced with backward curved blades made entirely of aluminium. The inlet cones made of galvanised sheet steel are screwed into the casing. The impellers together with the impeller hub are dynamically balanced at two levels according to quality level G2.5 as per DIN ISO1940.
Electrical connection

The electrical connection is made through the terminal box on the motor in protection class IP55.

Specifications

  • Configuration: centrifugal
  • Function: locking
  • Other characteristics: backward curved, IP55, galvanized steel
  • Application: industrial
  • Air flow: Min.: 0 m³/h (0 ft³/h)
  • Mounting: for integration
