A7A

Article: 00062703

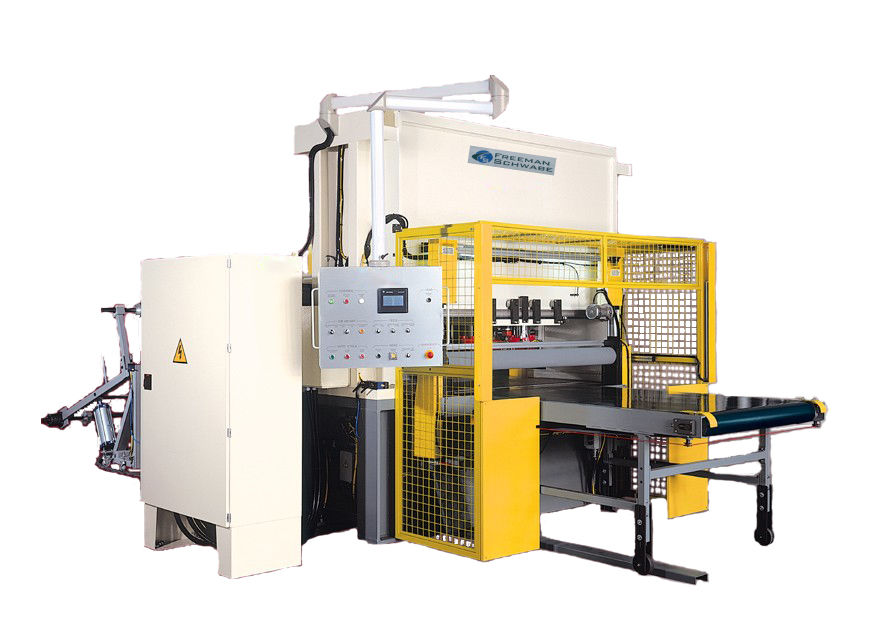

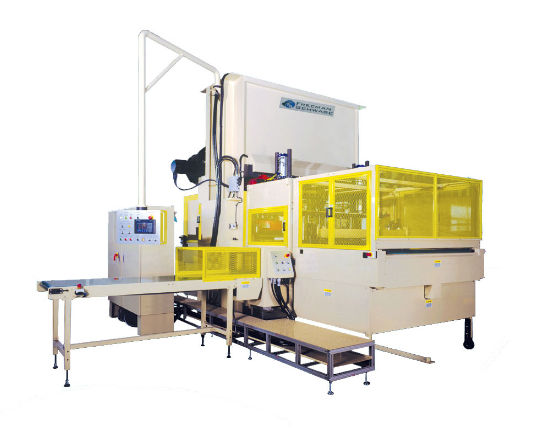

Cutting press / hydraulic / automatic

Features:

Unique traveling head featuring high tonnages and custom feeding/stacking systems.
Optional knockout and stacking units available.
Optional side die load for easy access and quick die changes.
Regularly supplied for the following material appliactions and industries
Coated Abrasives, Gaskets, Foam, Plastic, Rubber, and other dense, hard to cut materials.

Benefits:

Immediate Recall Information

The head movement is controlled by an Allen Bradley controller with the benefit of a die cutting data memory for immediate recall of information.

Manufacturing Flexibility

Available with a variety of feed systems such as roll, clamp, belt and sliding tables.

Range of Machine Options

Oscillating cutting surface

Vacuum slug removal

"Kiss-Cutting" capability

360° rotating head

Turret head with four axis CNC control system for multi-die handling capability.

Nesting software is also available and can be integrated with the press controls

Specifications

  • Process type: cutting
  • Operation: hydraulic, automatic
  • Pressing force: 1250 kN, 750 kN
