Hydrostatic level sensors

ZHANGJIAGANG TM SENSOR CO.LTD

  • Hydrostatic level sensor / for liquids / high-accuracy / stainless steel
  • Hydrostatic level sensor / for liquids / high-accuracy / stainless steel

NS-E

Article: 00062879

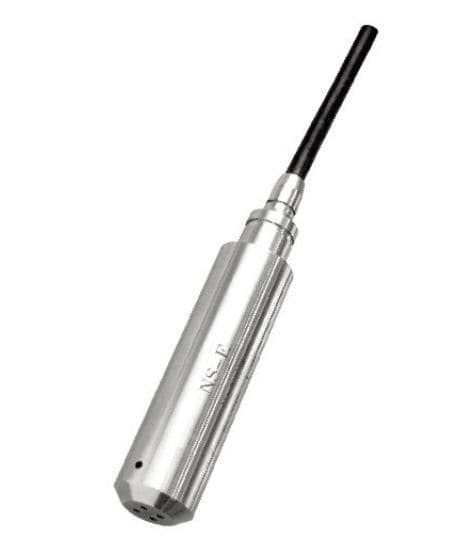

Hydrostatic level sensor / for liquids / high-accuracy / stainless steel

NS-E Level sensor is widely used in Petrochemical, environmental, water conservancy field etc;

?Passed EMC, salt spray, temperature and humidity test;
?Measuring with stainless steel-diaphragm isolation;
?Full stainless steel structure;
?Waterproof ventilation cable connected with the shell hermetically;
?Anti-shock long-term stability;
?Provide users with matching water depth pressure instrument.

1.Measuring range 0...0.5m-1.0m... 100m...150m...200MPa
2.Measuring Media Gas,Oil(compatibale with 304,316L strainless steel)
3.Output signal 4-20mA,2 conductor,0-5VDC,3 conductor,0-10VDC,3 conductor
4.Operating voltage 24VDC(12-32VDC)
5.Accuracy ±0.1?F.S, ±0.25?F.S
6.Long-term drift ?±0.5?F.S/year(typ)
7.Compensated temperature range -20?+80?
8. Operating temperature range -40?+80?
9. Current consumption ?40mA,3 conductor
10.Insulation resistance ?100M? (100VDC)
11. IP 68

Specifications

  • Technology: hydrostatic
  • Measured material: for liquids
  • Other characteristics: high-accuracy, stainless steel
  • Protection level: IP68
  • Level range: Min.: 0 m (0' 0")
  • Process temperature: Min.: -40 °C (-40 °F)
