Paddle mixers, ribbon mixers

Shuanglong Group

  • Ribbon mixer / batch / vacuum
  • Ribbon mixer / batch / vacuum
  • Ribbon mixer / batch / vacuum

100 - 20 000 L | WLDH Series

Article: 00105967

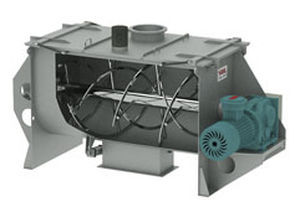

Ribbon mixer / batch / vacuum

Introduction:

??Ribbon Mixer is primarily designed for use with dry materials, although gas and liquid streams can also be added. A wide variety of configurations, for either batch or continuous mixing, are available with sizes ranging from 100-20000 liter working capacity. Application specific rotor mixing element design allows shorter batch cycle times due to increased mixing efficiency. We can customize the design of the Ribbon Mixer to meet your specific mixing requirements. Mixing vessels can be standard U-shape or cylindrical depending on internal pressure or vacuum requirements.

Working Principle:

??Ribbon mixer consists of transmission parts, double ribbon agitators and U-shape cylinder. In the direction of rotation, the outer ribbon pushes materials from both ends to the middle, while the inner ribbon pushes materials from the middle to both ends. Ribbon wind with different angle direction carries the materials flowing in different directions. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly.

Basic Information:

--Mixer Type:Ribbon Mixer
--Operationing way: Diffusion and Convection
--Application:Powder Mixing, Powder Mixing with Little Liquid, Granules Mixing
--Certification:CE, ISO
--Layout :Horizontal
--Agitator: Double Ribbon(interior and exterior)
--Additional Function: Heating, Cooling, Spraying, Positive Pressure, Vacuum
--Advantage: Widely Application, High Mixing Precision, Rapid Mixing Time and Large Loading ratio

Specifications

  • Type: ribbon
  • Batch/continuous: batch
  • Other characteristics: vacuum
