Measuring device / insulation resistance / portable

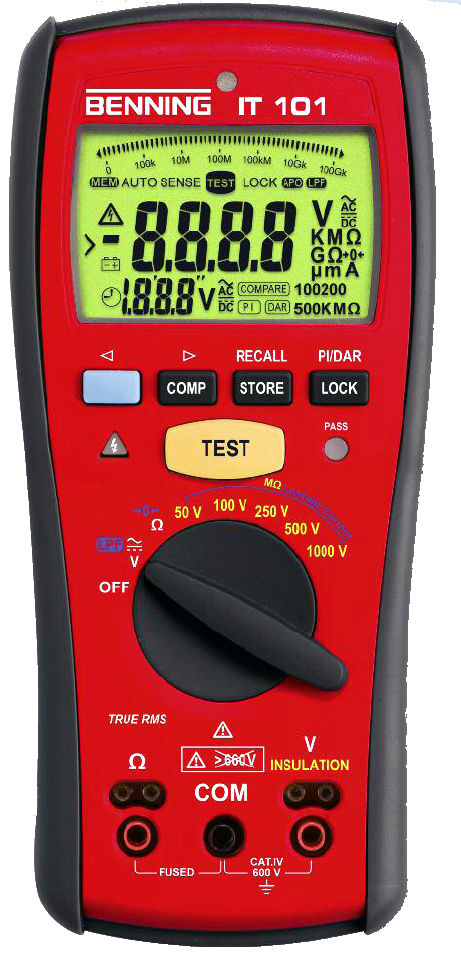

BENNING IT 101
Insulation and Resistance Measuring Device
- measurement of insulating resistance and calculation of the resulting leakage current
- testing voltages of 50 V, 100 V, 250 V, 500 V and 1000 V
- selectable limiting values for ISO measurement, green LED for ?PASS?, red LED for testing voltage/external voltage
- resistance measurement with a testing current of 200 mA for testing protective conductor connections
- measurement of polarization index (PI) and dielectric absorption rate (DAR)
- switchable probe tip for triggering the measuring process
- internal memory for 100 measuring values per measuring function
- TRUE RMS voltage measurement with low-pass filter
- including case, switchable probe tip, silicone measuring lines, magnetic hook, alligator clips, rubber protective frame and batteries

Specifications

  • Measured value: insulation resistance
  • Other characteristics: portable
