IP65, Ex | MBA 2.2, MBA 3.2

Article: 00121369

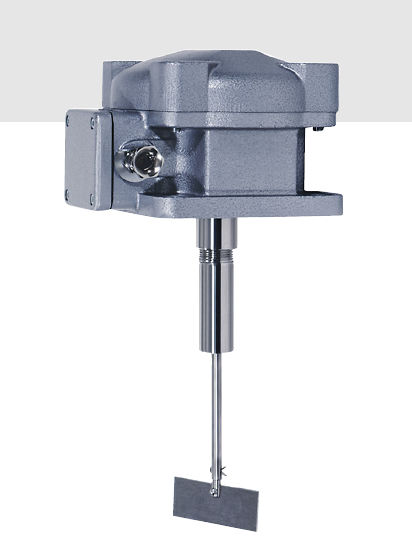

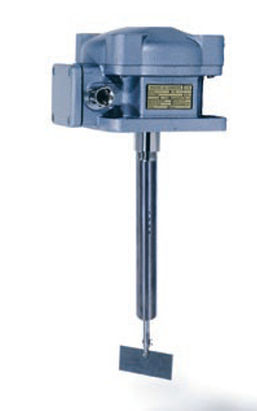

Rotary paddle level switch / bulk solids / explosion-proof

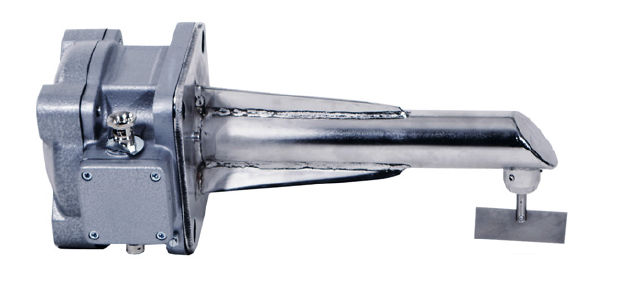

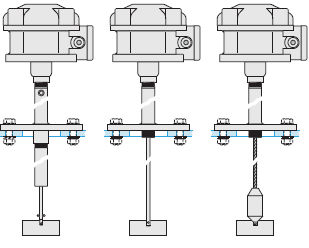

The MBA 2.2 and MBA 3.2 Explosion-proof Rotary Paddle Level Switch is made of extremely durable grey cast iron and the protection class is IP 65. MBA 2.2 can also be equipped with a flexible steel shaft or with a protection tube 65° angled flange and MBA 3.2 for reinforcement of the angle arm by additional ribs. The operation temperature extends to 350°C and the pressure levels is up to PN16. The two version have distinct supply voltages and speed levels. The MBA 2.2 can be deployed vertically and MBA 3.2 can be deployed horizontally. Both MBA 2.2 and MBA 3.2 are certified and approved by ATEX application for dust-EX-area 20 (II 1 / 2 D IP 65 T) and gas-EX-area 1 (II 2G Ex de IIC / IIB T1/T2/T3).

Specifications

  • Technology: rotary paddle
  • Measured material: bulk solids
  • Protection level: explosion-proof
