SE series

Article: 00121359

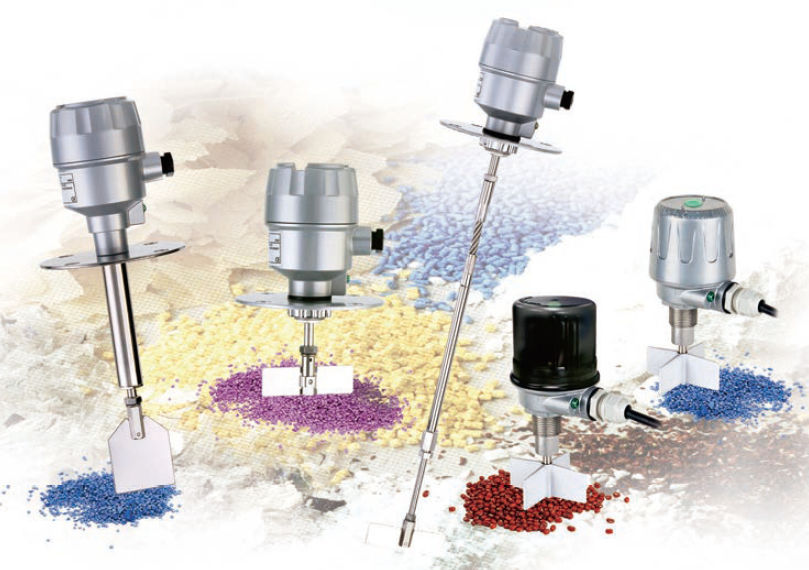

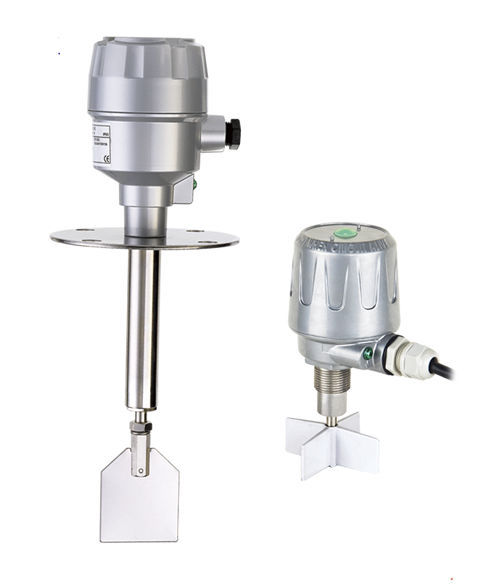

Rotary paddle level switch / for solids / top-mounted / rugged

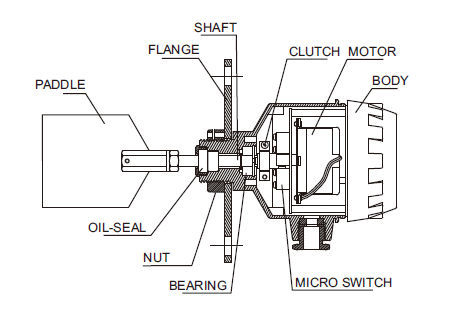

SE Rotary Paddle Level Switch functions using an easy principle. A unit is normally placed through a bin wall at the base, middle or top of a bin. When operating without any presence of material, a synchronous motor turns the paddle with a rate of 1RPM. Once the paddle rotation is obstructed by materials, the motor will stop resulting in the changing of state of the micro switch.

Specifications

  • Technology: rotary paddle
  • Measured material: for solids
  • Mounting: top-mounted
  • Protection level: rugged
  • Process temperature: Min.: -40 °C (-40 °F)
