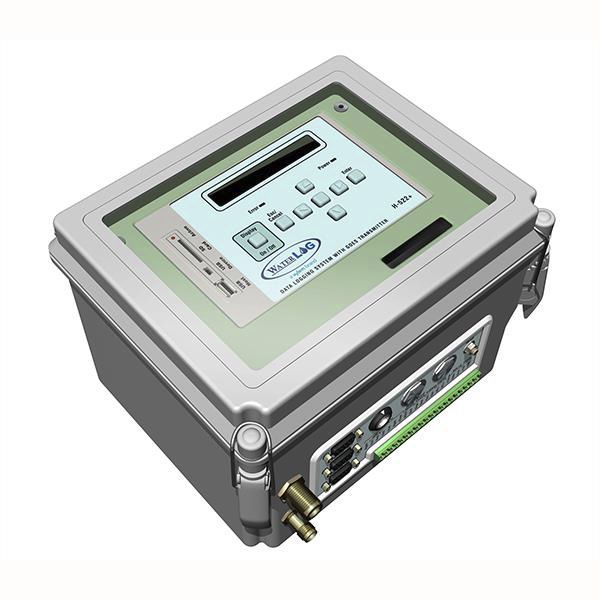

H-522

Article: 00138628

Digital data logger / for monitoring

If you're looking for a data logger with a fully integrated HDR transmitter the H-522 and H-522+ are your models. Capable of communicating through GOES, METEOSAT or INSAT satellites, these models are designed for use in remote monitoring applications. The H-522 and H-522+ allow your to transmit data storage and sensor values to a satellite network for near real-time data retrieval. If you don't have the need for a display, the H-522 is your model, but keep in mind, the H-522+ is our top seller, with close to 6000 units in operation to date.

Features:

Simple menu driven user interface
Low standby power
External button allows simplified means to view current data values
USB Type A Host and Mini B Device (2.0)
Three RS-232 Serial Ports for use with local terminals, displays, modems/satellite, etc.
Four analog inputs
SDI-12 Master or Slave Mode
Quadrature shaft encoder input/output
Event counter input (Tipping Bucket Rain Gauge)
Frequency input (wind speed)
Scalable 4-20 mA Output
Data logging using nonvolatile internal storage
XL Basic Programming
Integrated Satellite Transmitter (H-522+ only)

Specifications

  • Type: digital
  • Other characteristics: for monitoring
  • Memory capacity: 256 unit
