Vertical milling machines, vertical machining centers 3-axis

PINNACLE Machine Tool Co.

  • CNC machining center / 3-axis / vertical
  • CNC machining center / 3-axis / vertical
  • CNC machining center / 3-axis / vertical
  • CNC machining center / 3-axis / vertical
  • CNC machining center / 3-axis / vertical
  • CNC machining center / 3-axis / vertical

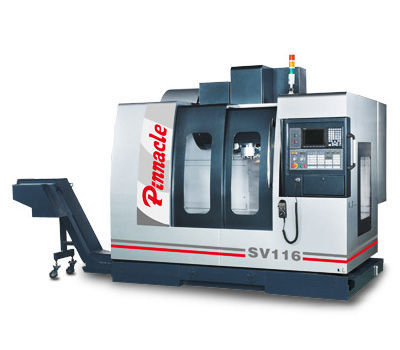

SV116, SV126

Article: 00140604

CNC machining center / 3-axis / vertical

Now you can get the right VMC’s with the right features for extra heavy-duty machining, superior stability and excellent rigidity. Pinnacle box way SV series are quality constructed throughout for maximum performance dependability - year after year. If you expect a VMC that will provide higher machining efficiency to reduce production costs, then consider placing a dependable, heavy-duty Pinnacle SV series in your production line.
Features :
- 1140(1300) X 610 x 610 mm Travel
- Rapid Feedrate 20/20/20 m/min
- 15 HP Spindle Motor
- ISO40 (ISO50) Spindle Taper
- Spindle Speed 8,000 rpm, 10,000 rpm (option),
- Direct drive 12,000 rpm (option)

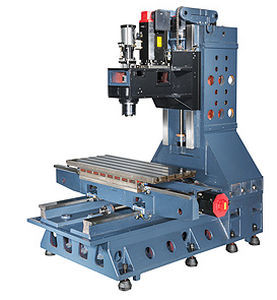

- X, Y & Z Axis Box Way

Specifications

  • Control type: CNC
  • Number of axes: 3-axis
  • Spindle orientation: vertical
  • X travel: 1300 mm, 1140 mm
  • Y travel: 610 mm
  • Z travel: 610 mm
  • Rotational speed: Min.: 60 rpm (376.99 rad.min-1)
  • Power: Min.: 11 kW (14.75 hp)
