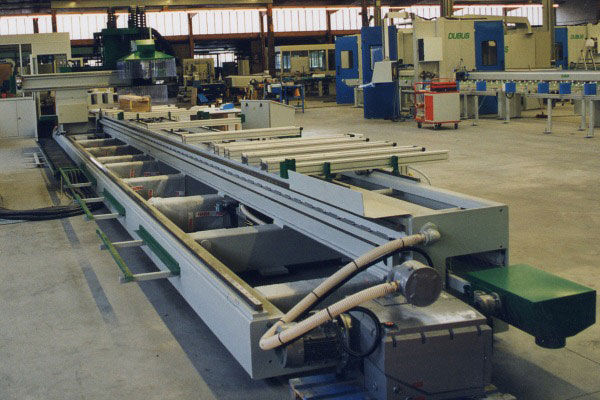

CND 2000

Article: 00144821

CNC machining center / 4-axis / 5-axis / 3-axis


Numerically controlled machining centres for Wooden Parts
Material

Wood
Applications

Automatic 3, 4 or 5 axis centres designed for milling large dimension wooden panels and parts
Milling, cutting, drilling

Technical specifications

Allowable part dimensions:


Length (X axis): 2800 mm as standard / up to 9000 mm as option
Width (Y axis): 600 x 1,300 mm
Height (Z axis): 200 mm as standard / up to 400 mm as option
Speeds: X axis = 75 m/min ? Y axis = 40 m/min / Z axis = 75 m/min

Main characteristics Strong points of the machine

3, 4 or 5 axis numerical control centre with moving ram and fixed working table
Allows milling, cutting, drilling and routing operations on the top and sides of parts
Modular construction, permitting the number of machining units and carriages to be adapted for greater productivity and quality from the operations performed,
tailor made working area, smooth table, grooved vacuum table, mobile clamp and/or sucker cross slides, depending on the envisaged parts and applications
Manual or optional automatic roller, conveyor or belt part feeding
Varied applications: street furniture, wooden buildings, verandas, fitting out, concrete formwork, panels?
accuracy +/- 0.2 mm per linear metre as standard or overall with calibration
Optional automatic programming post processor including batch and 2/3D model file import

Specifications

  • Control type: CNC
  • Number of axes: 4-axis, 5-axis, 3-axis
  • Spindle orientation: vertical
  • Other characteristics: for wood, cutting
  • X travel: 2800 mm
  • Y travel: 600 mm
  • Z travel: 200 mm
