2-13,8kV

Article: 00001104

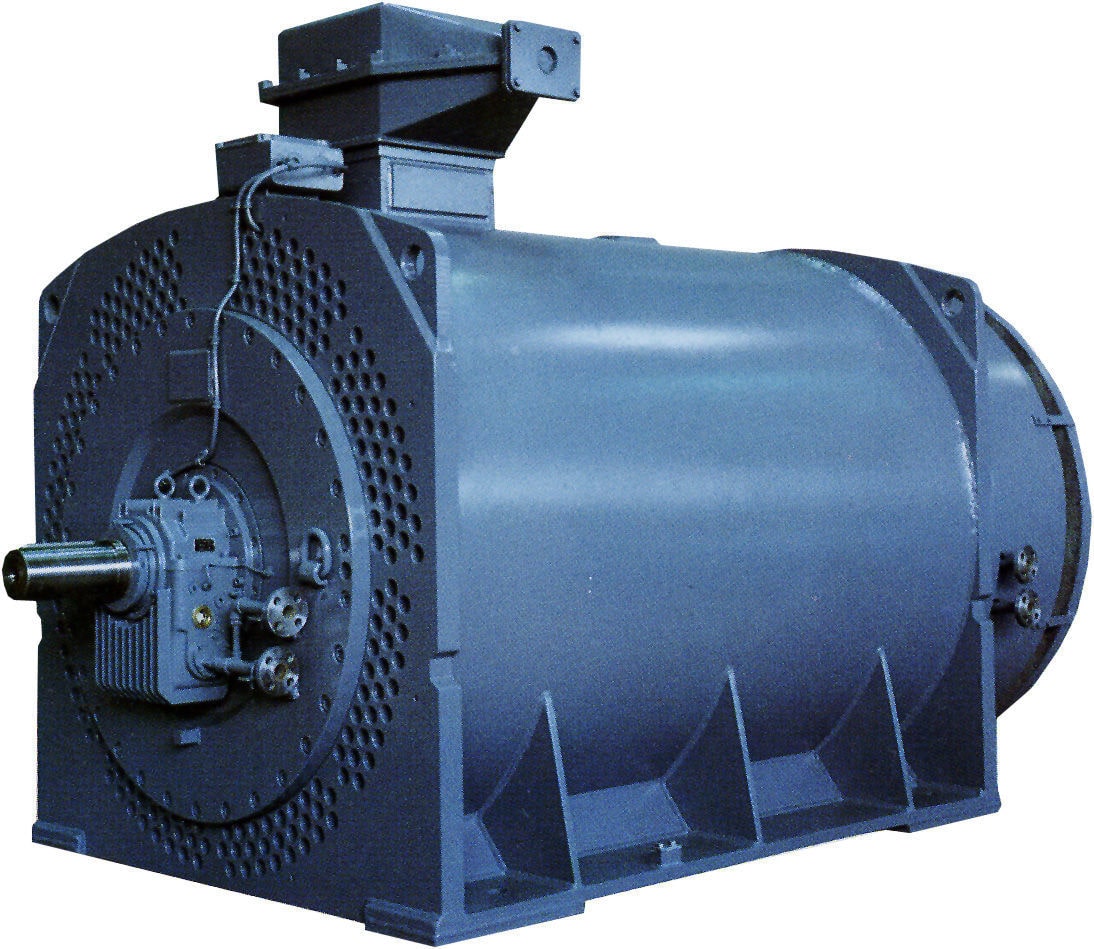

AC motor / asynchronous / three-phase / high-voltage

Modular Squirrel Cage Motors of the MENZEL Series MEBKGR / MEBKSL / MEBKSD / MEBKSW / MEBKSH

Voltage ratings:
2 up 13.8 kV

Mounting:
IM B3 for horizontal installation
IM V1 for vertical installation

Standard types of cooling systems:
IC 411, IC 611, IC 81 W, IC 01, IC 511

Standard degrees of protection:
IP 55, IP 23

Assets:
? Superior value-for-money ratio
? High power efficiency and low operation costs
? Reliable and durable bearing construction
? Great vibration signatures and low maintenance costs
? Windings in temperature class F (VPI)
? Reliability and long life expectancy
? High load capacity
? Low noise emissions

Custom models according to specifications

Flexible Applications:
? Mills
? Crushers
? Shredder
? Refiners etc.

Short-time modifications of all stocked motors for special applications are always possible. Urgent delivery will be organized by courir transports and over-night service.

Menzel Elektromotoren Berlin is certified according to DIN EN ISO 9001

Specifications

  • Type: AC, asynchronous
  • Technology: three-phase, high-voltage
  • Other characteristics: squirrel cage
  • Torque: Min.: 250 Nm (184.39 ft.lb)
  • Power: Min.: 100 kW (134.1 hp)
  • Rotational speed: Min.: 300 rpm (1884.96 rad.min-1)
