CTA

Article: 00003117

Single-flow air handling unit / horizontal

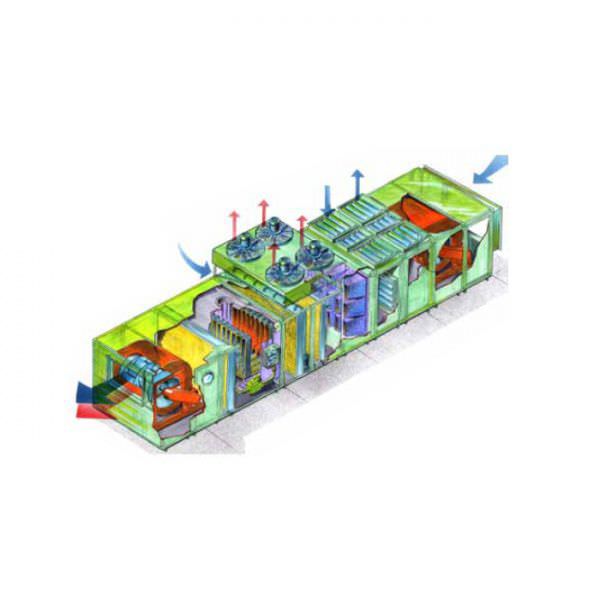

The CTA has been constructed using a containing bearing frame type structure, to which the heat insulation panels (panels thickness : approx. 45 mm) are applied.
The station is constructed with boxed section aluminium joined together by die-cast aluminium elements and double wall sandwich closing panels and internally reinforced and constructed in galvanised sheet metal with insertion of thermo-insulating basaltic fibre material having a density not less than 70 kg/m3.

The internal walls, according to structural and acoustic requirements, are in solid or perforated galvanised sheet metal and the external walls are in visible galvanised sheet metal.

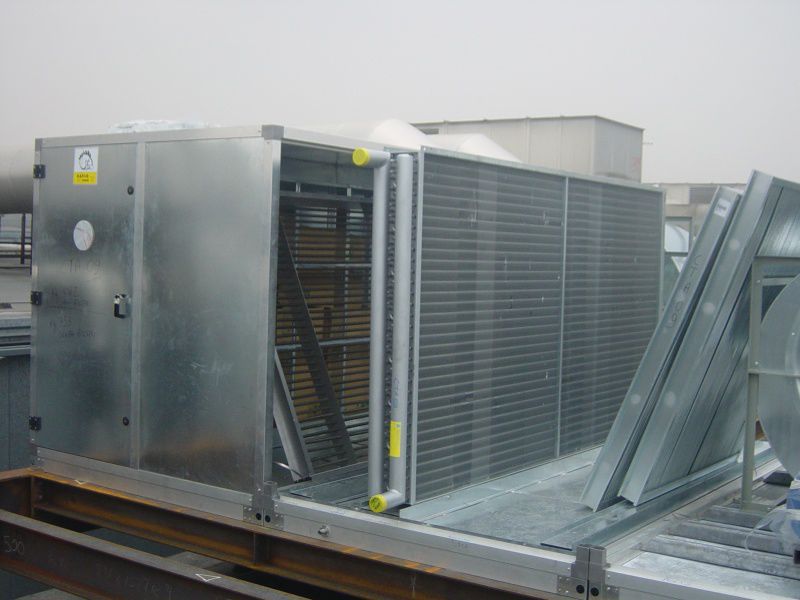

CTA units for external use are fitted with flat roof in galvanised sheet metal.
The unit is supplied in sections and the coupling of the different parts is by means of galvanised bolts, with the insertion of self-adhesive seals.

COMPONENTS AND SECTIONS USED INSIDE OUR CTA:

ADJUSTMENT GATES AND MIXING SECTIONS
Gate to adjust the air flow, constructed with:

Galvanised steel sheet metal frame
Tabs in galvanised steel sheet
Galvanised external control levers
Nylon bushings
Galvanised control pins
The gate is pre-set for possible servo control
These gates are often used in the mixing sections

FILTERING SECTION
Section consisting of:

Metal and/or synthetic pre-filters with different degrees of filtering efficiency
Pocket filters or other with different degrees of filtering efficiency
Filter holder frames in galvanised steel

BATTERIES SECTION
Section consisting of :

Fe/Al heating battery
Cu/Al cooling battery

The batteries are placed on guides for easier extraction.

Specifications

  • Type: single-flow
  • Configuration: horizontal
