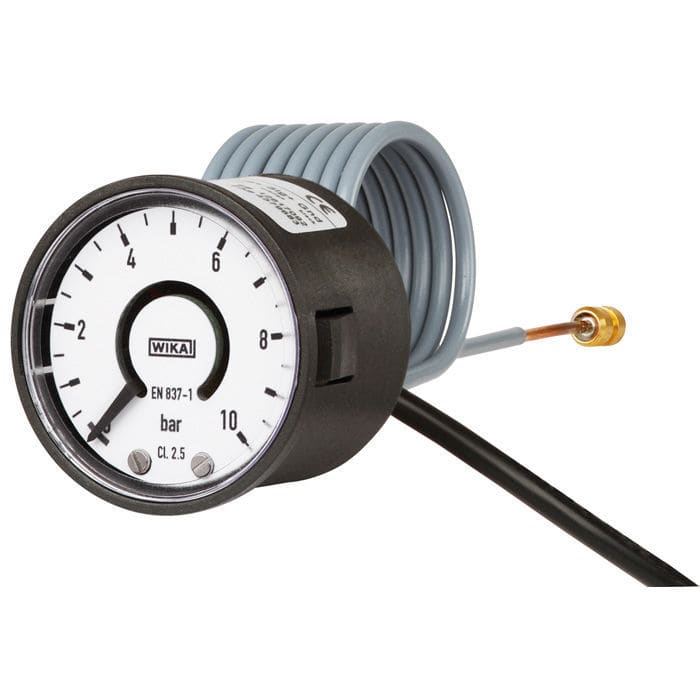

Pressure gauge / Bourdon tube / dial / with electrical contact / non-contact

Applications

For monitoring of water pressure changes in heating plants (wall-type boilers, free-standing boilers)

Special Features

Non-contact sensor (wear-free)
Case made of plastic with snap-fit cams for panel mounting
Nominal size 40
Scale ranges 0 ... 2.5 bar to 0 ... 10 bar
Output signal 0.5 ... 4.5 V ratiometric

Descriptions

Design
EN 837-1

Nominal size in mm
40

Accuracy class
2.5

Scale ranges
0 ... 2.5 to 0 ... 10 bar
or all other equivalent vacuum or combined pressure and vacuum ranges

Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value

Specifications

  • Technology: Bourdon tube
  • Display: dial
  • Type: with electrical contact
  • Other characteristics: non-contact
