Article: 00006641

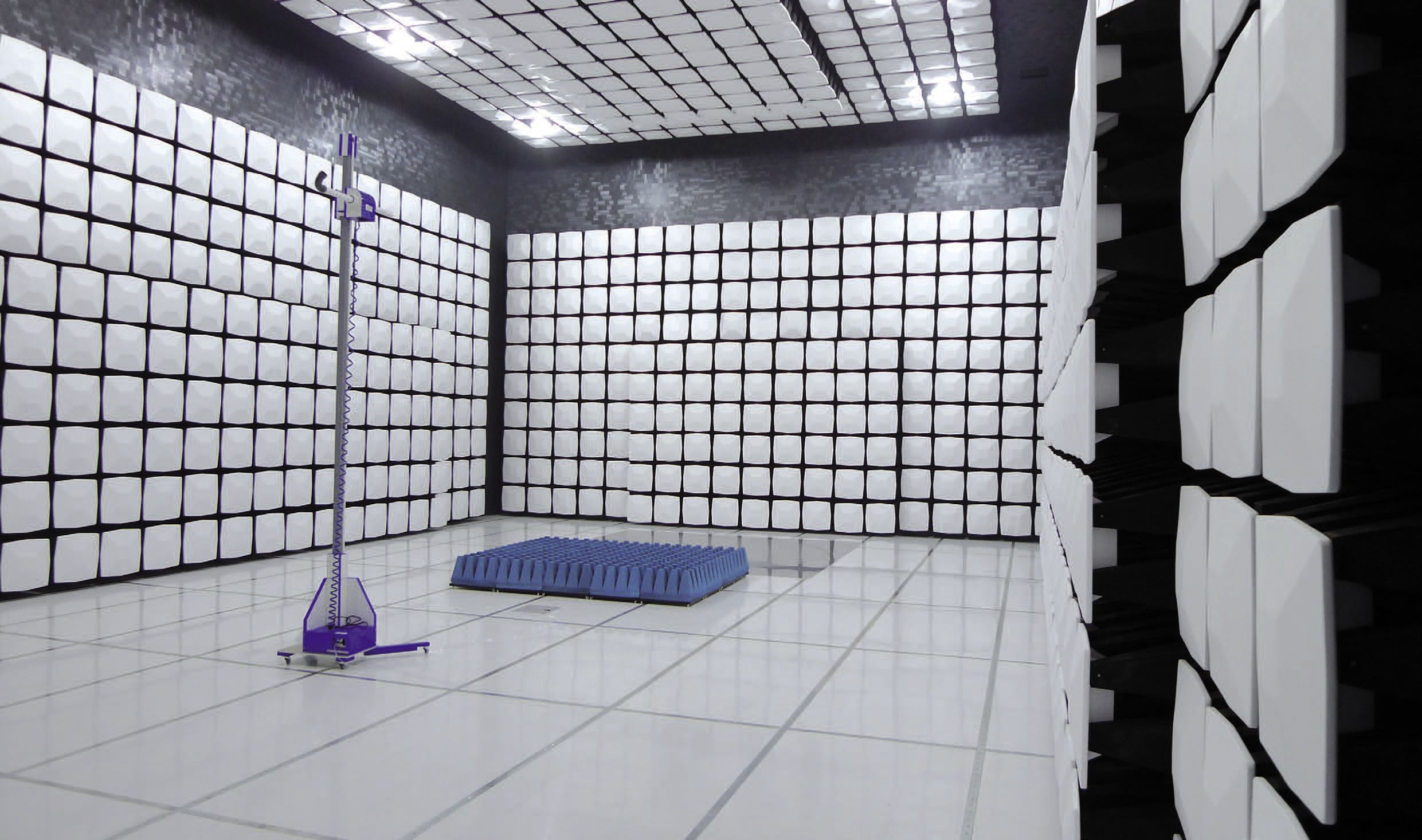

Anechoic test chamber / EMC / aircraft

The Gold standard for Anechoic Chamber EMC testing, this 10 meter test range ensures fully compliant Emission and Immunity testing and is compliant to CISPR-16 with a measurement zone diameter of 4 meters or greater. The most versatile and accurate of EMC test chambers. Ferrite tiles and hybrid pyramidal absorbers allow for high accuracy and performance while meeting compact space requirements.
Dimension of 21m x 12m x 8.5m
Fully compliant design to meet CISPR, EN and FCC requirements
ANSI C63.4 Emission performance of +/-4dB or better; 30MHz- 18GHz frequency range;
Extended performance options 26MHz-40GHz MIL STD 461F and other specifications
Fully compliant for Immunity in accordance with EN61000.4.3
HyPyr-LossTM Ferrite and Hybrid Lining from 26MHz-40GHz measurements
Optimised computer modelling to enable partial Hybrid low cost version
Bespoke design our speciality, our modular design enables unlimited performance options
Available as a turnkey package test system, chamber, antenna & mast, turntables, instrumentation and software.

Specifications

  • Type: anechoic, EMC
  • Applications: aircraft
