  • Variable attenuator

1 - 31 GHz, 5 bit | TGL2223-SM

Article: 00007377

Variable attenuator

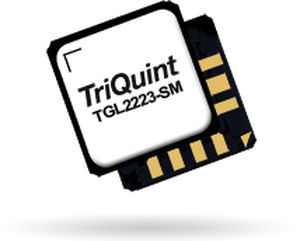

TriQuint's TGL2223-SM is a wideband, 5-bit digital attenuator using TriQuint's TQPHT15 production 0.15um GaAs pHEMT process. Operating from 1 - 31 GHz, the TGL2223-SM offers a low LSB of 0.5 dB and supports > 15.5 dB of attenuation range with a low RMS step error of
Using standard negative control voltages from -3.3 to -5 V coupled with excellent broadband performance, the TGA2223-SM is ideal for supporting of a variety of commercial and military applications.

The TGL2223-SM is packaged in a 3 x 3 (mm) ceramic air-cavity QFN with both RF ports matched to 50 ohms for simple system integration.

Lead-free and RoHS compliant.

Evaluation Boards available on request.

Specifications

  • Options: variable
