Audible Alarms Sirens Sounders

Aet

  • IP66 alarm sounder

T105

Article: 00007497

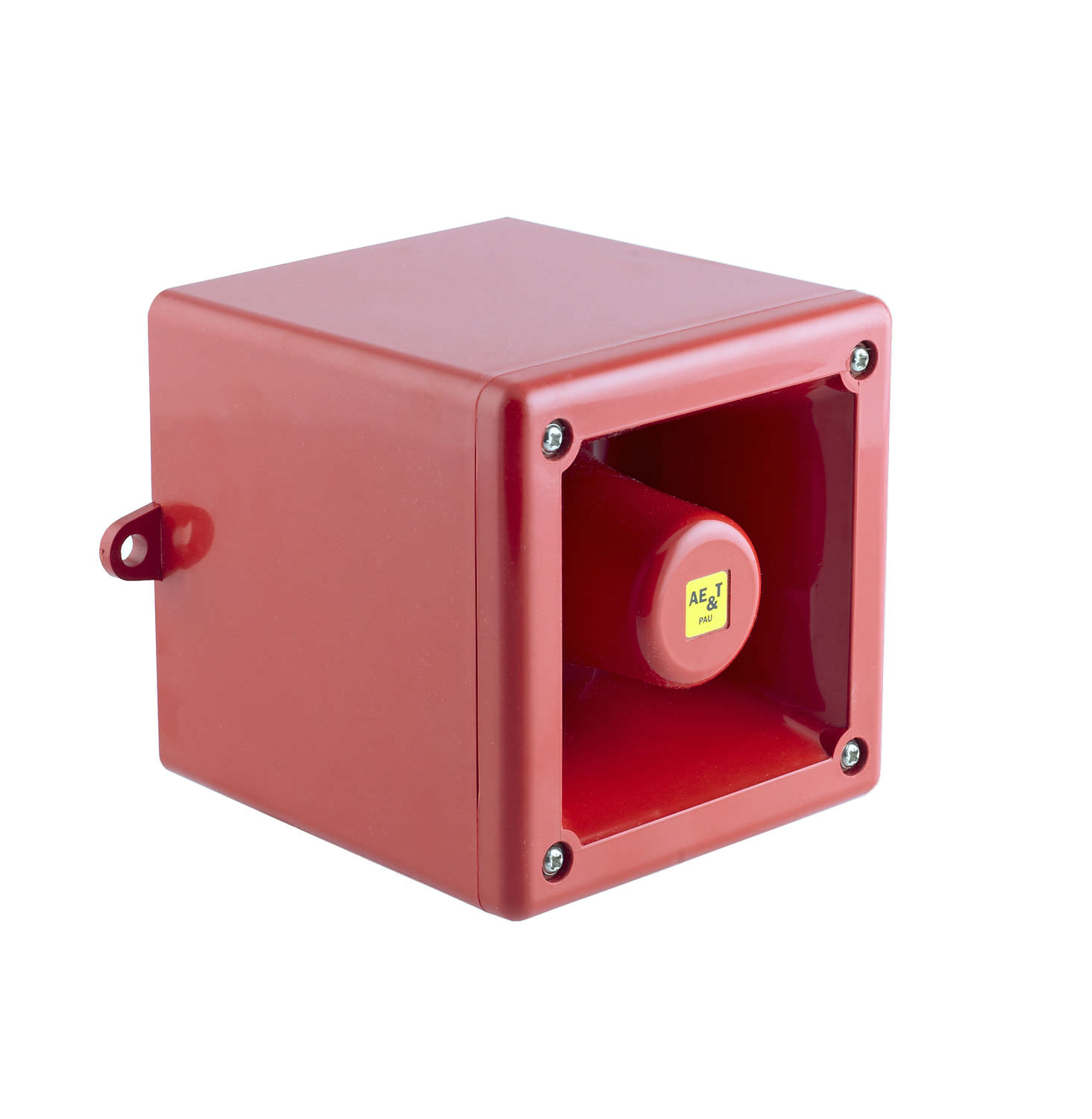

IP66 alarm sounder

Robust Siren with high Ingress Protection: IP66
32 tones (including NFS32001) / 3 alarm stages
Easy installation (2 cable entries already drilled)
Automatic synchronization in parallel mounting
Continuously rated
Effective Range (60 m @ 1 KHz)
Ideal for marine application, 24 VDC

Product name : Electronic siren - 105 dB @ 1 m
Sound pressure level : 105 dB
Number of tones : 32
Number of stages : 3
Selecting tones : 32 alarm tones selectable via DIP switch
Ingress protection : IP66
Duty cycle : 100%
Relative humidity : 90% at 20 ° C
Weight : 0.75 kg (dc versions) and 1.00 kg (AC versions)
Dimensions : 130 x 130 x 133.5 mm
Rated voltages : 24 VDC, 48 VDC, 100 VDC, 24 VAC 50/60 Hz, 115 VAC 50/60 Hz, 230 VAC 50/60 Hz
Operating range : 24Vdc/10-30V, 48 V Vdc/35-60; Vdc/72-120 100 V, + / - 10% for VAC versions
Nominal current consumption : 25 mA (24V DC), 50 mA (48V DC), 27 mA (100V DC), 40 mA (24 Vac), 20 mA (115Vac) 15 mA (230Vac)
Electrical insulation : Class II
Cable entry : 2 x M20 - clearance gland entries in side & back
Cable cross-section : 0.5 to 1.5 mm ² cables
Housing material : Self-extinguishing ABS - Red
Operating temperature : -25 to +55 ° C
Storage temperature : -40 to +70 ° C
Synchronised : Yes (in parallel mounting)


Examples of applications

Suitable for noisy environments.
Workshops, machines, robots, corridors, medium sized buildings, etc..
Ideal for marine applications 24 VDC

Specifications

  • Protection level: IP66
  • Sound level: Max.: 112 dB
