Automatic Dispensers Liquids Resins

Viscotec Pumpen U Dosiertechnik Gmbh

  • Fiber dispenser / for abrasive fluids / for pasty products / for shear-sensitive media
  • Fiber dispenser / for abrasive fluids / for pasty products / for shear-sensitive media
  • Fiber dispenser / for abrasive fluids / for pasty products / for shear-sensitive media
  • Fiber dispenser / for abrasive fluids / for pasty products / for shear-sensitive media

3RD4-EC

Article: 00008055

Fiber dispenser / for abrasive fluids / for pasty products / for shear-sensitive media

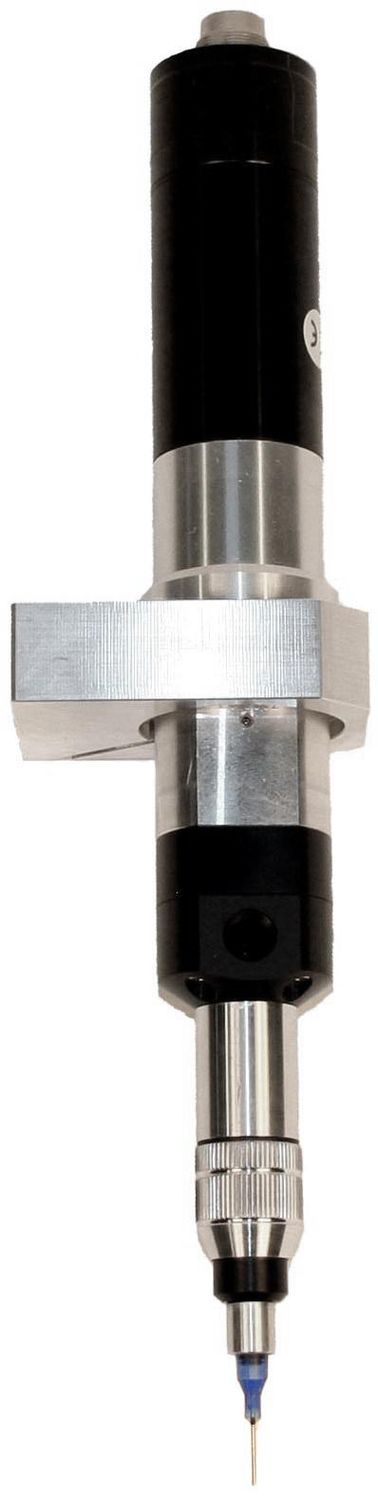

The compact ViscoTec dispenser 3RD4-EC ensures smooth and reliable product supplying of abrasive, high-filled or shear sensitive material - with a repeatability of +/- 1 %!

Absolutely precise, consistent and reliable dosing of a wide variety of materials - thanks to the special rotor-stator geometry. Alternately opening chambers allow the gentle transfer and pulsation-free dispensing of product.

Your advantages:
- non-stick coated interior
- reverse-flow possible (no dripping or stringing of product)
- linear relation between drive speed and dosing volume
- constant dosing volume, also with density or viscsity fluctuations
- reliable dosing even without heating the material
- long lifetime due to a range of components for specific material
- time and cost saving maintenance and cleaning
- quick assembly
- as an alternative: dosing system with ViscoPro-Cm drive for easy programming of quantity and speed (see separate data sheet)

Application:
- dot application or bead dosing, variable quantities possible
- dosing of all low and high viscosity adhesives and sealants
- particularly suitable for abrasive, high-filled or shear sensitive material

Technical data:
- dosing volume: ~ 0.05 ml/rev.
- min. dosing quantity: 0.001 ml*
- operating temperature: +10° to +80°C *
- material temperature: -20° to +80°C *
- max. speed: 125 upm *
- max. permissible torque: 1 Nm
- max. dosing pressure: 30 bar*
- max. supply (input) pressure: 10 bar*
- weight: approx. * depends on material

Specifications

  • Applications: fiber, for abrasive fluids, for high-filled material, for pasty products, for shear-sensitive media, fluid, for medium-viscosity media, for adhesives, for high-viscosity media, silicone, for low-viscosity media, for paint, for chemicals, oil, resin, solvent, brazing paste
  • Type: with progressive cavity pump, volumetric
  • Other characteristics: low-capacity, high-precision, continuous, automatic, single-component
  • Domain: for industrial applications, automatic, for the electronics industry, laboratory
