Automatic Dispensers Liquids Resins

Viscotec Pumpen U Dosiertechnik Gmbh

  • Fluid dispenser / for adhesives / silicone / for paint
  • Fluid dispenser / for adhesives / silicone / for paint
  • Fluid dispenser / for adhesives / silicone / for paint

3RD10-EC

Article: 00008057

Fluid dispenser / for adhesives / silicone / for paint

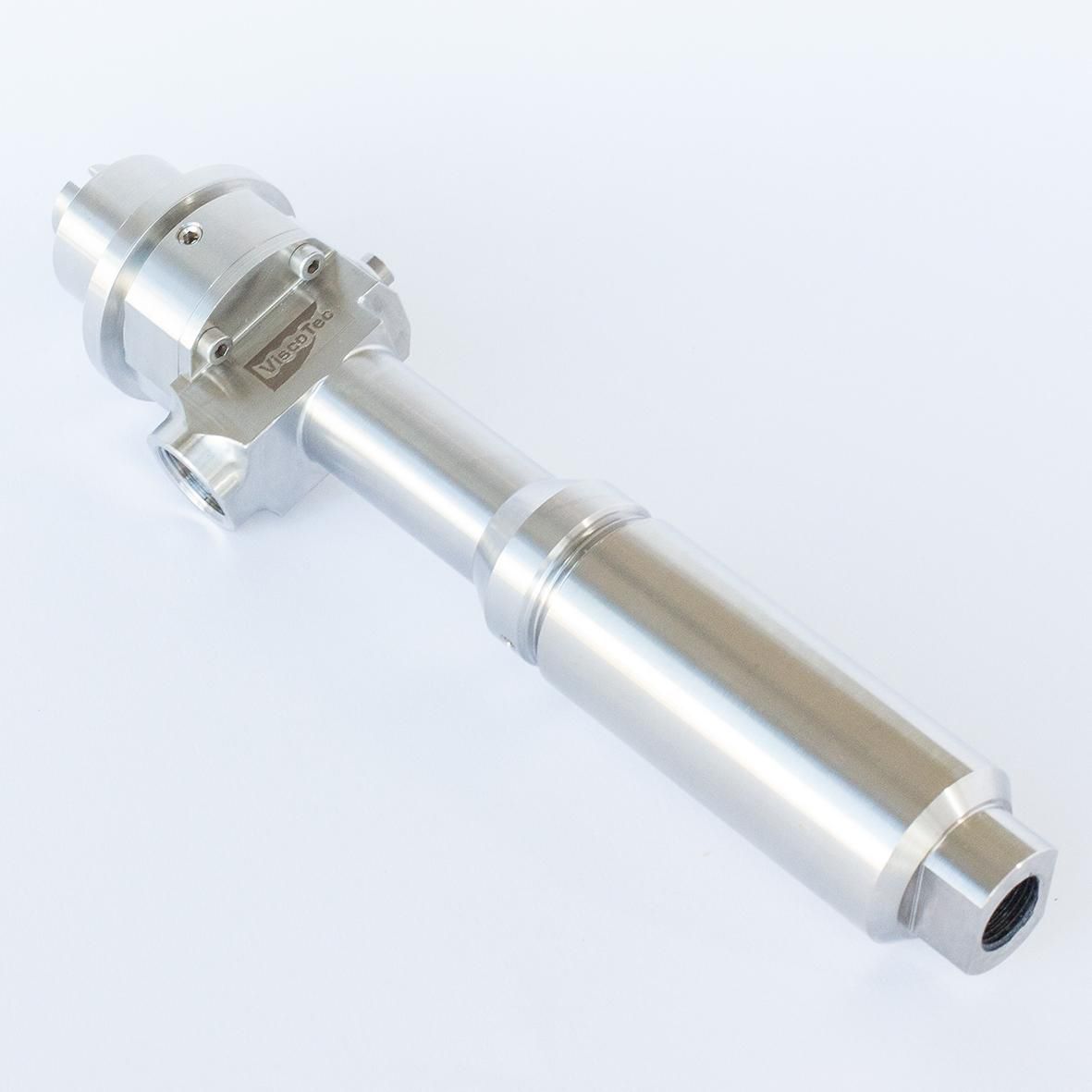

The compact ViscoTec Dispenser 3RD10-EC ensures smooth and reliable product supplying of abrasive, high-filled or shear sensitive material - with a repeatability of +/- 1 %!

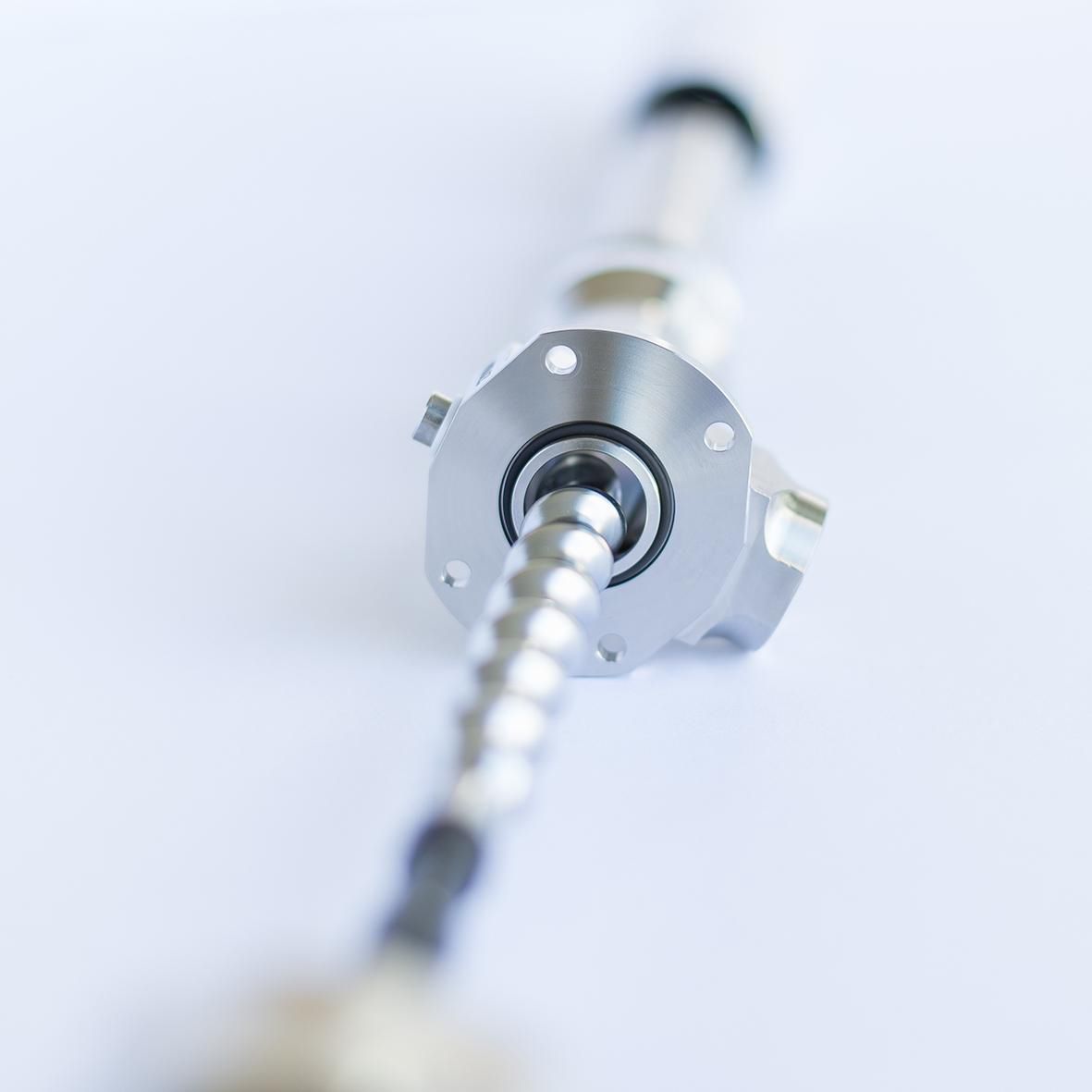

Absolutely precise, consistent and reliable dosing of a wide variety of materials - thanks to the special rotor-stator geometry. Alternately opening chambers allow the gentle transfer and pulsation-free dispensing of product.

Your advantages:
- non-stick coated interior
- reverse-flow possible (no dripping or stringing of product)
- linear relation between drive speed and dosing volume
- constant dosing volume, also with density or viscsity fluctuations
- reliable dosing even without heating the material
- long lifetime due to a range of components for specific material
- time and cost saving maintenance and cleaning
- quick assembly
- as dosing system with ViscoPro drive: easy programming of quantity and speed (see separate data sheet)

Application:
- dot application or bead dosing, variable quantities possible
- dosing of all low and high viscosity adhesives and sealants
- particularly suitable for abrasive, high-filled or shear sensitive material

Technical data:
- dosing volume: ~ 1.1 ml/rev.
- min. dosing quantity: 0.05 ml*
- operating temperature: +10° to +80°C *
- material temperature: -20° to +80°C *
- max. speed: 125 upm *
- max. permissible torque: 8 Nm
- max. dosing pressure: 30 bar*
- max. supply (input) pressure: 20 bar*
- weight: approx. 980 g
* depends on material

Specifications

  • Applications: fluid, for adhesives, silicone, for paint, oil, brazing paste, resin, for chemicals
  • Type: volumetric, with progressive cavity pump
  • Other characteristics: automatic, single-component, continuous, high-precision, manual, semi-automatic, low-capacity, programmable, with pedals, high-pressure
  • Domain: laboratory, for the electronics industry, automatic, for industrial applications
