Implement Industry Ideas

max. 8 000 rpm, max. 640 l/min, max. 450 bar | MA series

Article: 00009400

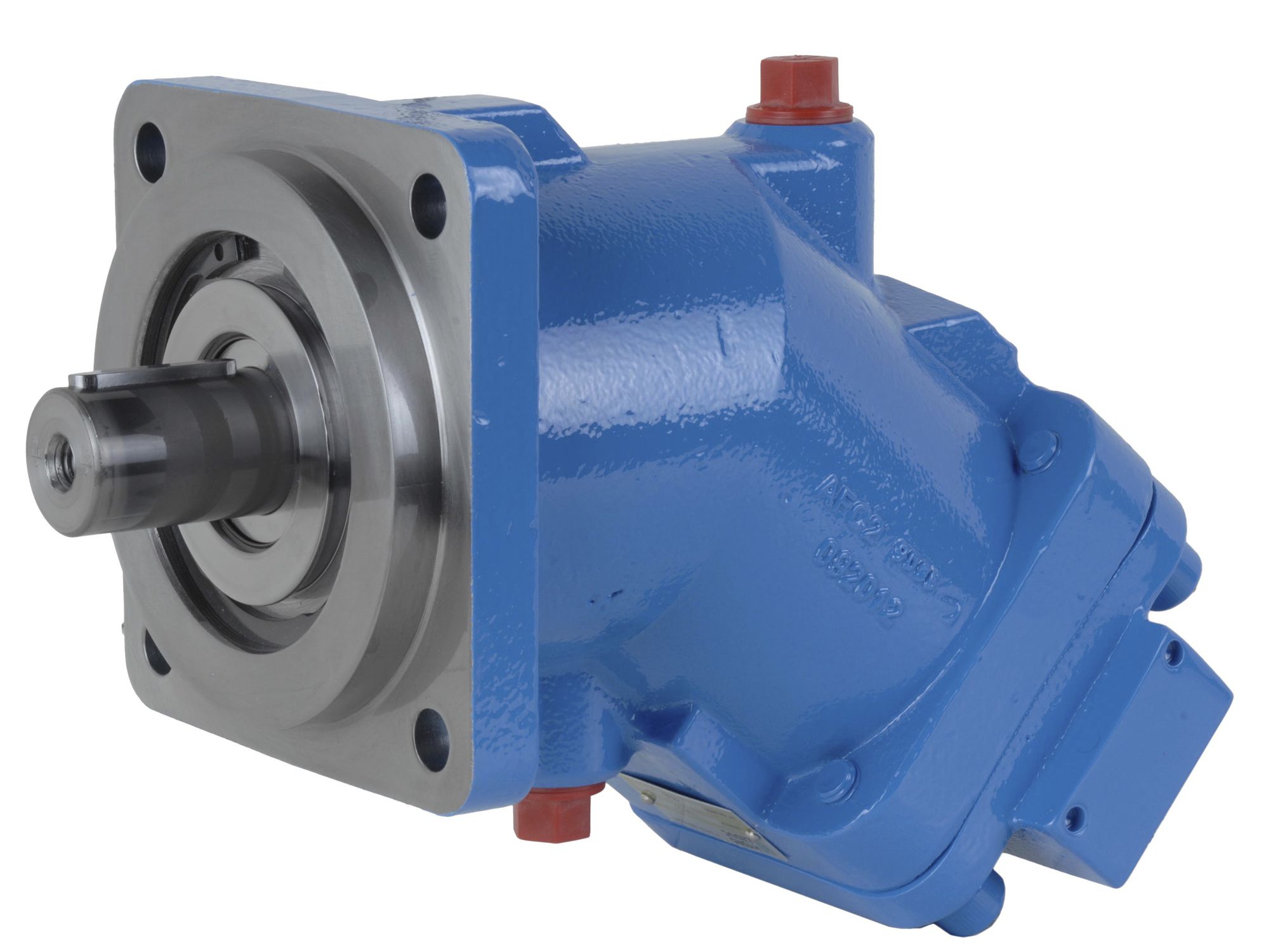

Axial piston hydraulic motor / industrial

Available in displacements from 12cc to 125cc, MA motors are suitable for all the main fixed and mobile applications.

MA series motors are suitable for intensive long duty requirements. Designed for both mobile and industrial installations. Typical applications are:

vehicle transmissions;
high power crushers;
forestry equipment;
heavy duty winches...

These motors are built to suit all applications to SAE (J744).

Specifications

  • Technology: axial piston
  • Other characteristics: industrial
  • Torque: Min.: 55 Nm (40.57 ft.lb)
  • Rotational speed: Min.: 3600 rpm (22619.47 rad.min-1)
  • Pressure: Min.: 400 bar (5801.51 psi)
