  • Shear beam load cell / hermetically-sealed / NTEP / stainless steel

SQB-H

Article: 00012555

Shear beam load cell / hermetically-sealed / NTEP / stainless steel

FEATURES
? Capacities: 1k to 10k lbs and 500 to 5000 kg
? High side-load tolerance
? Easy installation
? Electroless nickel-plated-alloy tool steel or
stainless steel
? NTEP III 5000M approval 1k to 10k lbs
? Optional
? FM approval available
? SQB-H(HSS) hermetically sealed stainless steel
APPLICATIONS
? Truck/rail scales
? Silo/hopper/tank weighing
? Platform scales (multiple load cells)
? Pallet truck scales
? Packaging machines
DESCRIPTION

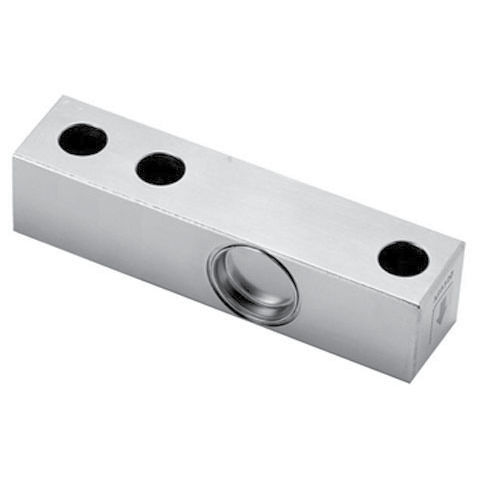

SQB-H(HSS) is a single-ended shear beam load cell
designed for multiple cell applications such as low profile
platform or small tank scales when used with proper
mounting accessories. It is insensitive to side loading and
capable of reversed loading. SQB-H(HSS) is constructed
of stainless steel and is hermetically sealed to IP68
providing excellent protection against corrosive and
washdown environments.

Specifications

  • Type: shear beam
  • Protection level: hermetically-sealed
  • Other characteristics: NTEP, stainless steel
