Brushless AC servo-motors

Fr. Sauter AG

  • AC electric servo-motor / brushless / 24 V / high-speed

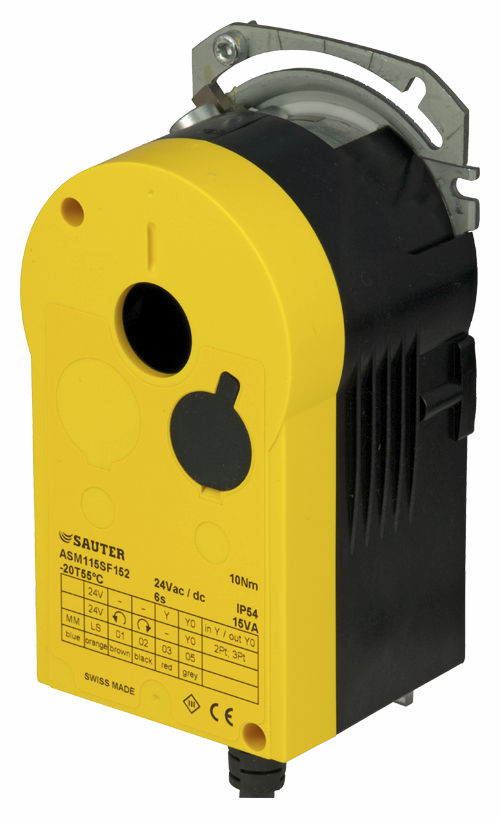

ASM 1x5S F152 series

Article: 00014302

AC electric servo-motor / brushless / 24 V / high-speed

How energy efficiency is improved
Precise activation and electronic cut-off for efficient usage of energy

Features
For controllers with switching (2- and 3-point) or continuous output (0?10 V)
Brushless motor with electronic activation and cut-out
Intelligent adaptation of angle of rotation
Electronic force-dependent cut-off
Direction of rotation selected with DIP switch g.png and h.png
Pulse length correction in 3-point operation, i.e. internal adjustment of start-up time
Self-centring spindle adapter
Gear unit can be disengaged to position the damper and for manual adjustment
Free configuration using the CASE Drive PC tool
Maintenance-free
Fitting: Vertically upright to horizontal, but not suspended

Specifications

  • Type: AC, brushless
  • Voltage: 24 V
  • Other characteristics: high-speed
  • Torque: 10 Nm (7.38 ft.lb), 5 Nm (3.69 ft.lb)
  • Power: 6.5 W (0.01 hp), 6 W (0.01 hp)
  • Diameter: Min.: 8 mm
