  • Brushless servomotor / synchronous / electric / 24 V

HBI

Article: 00014294

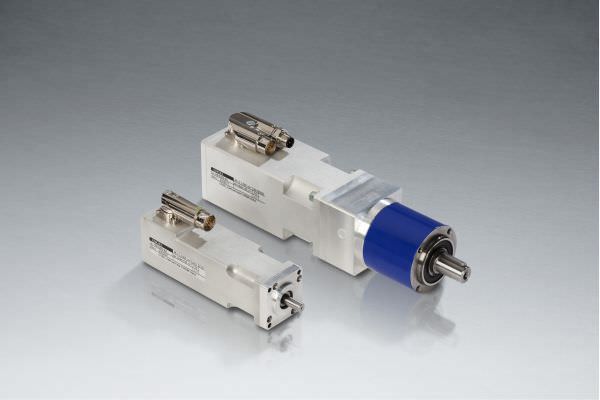

Brushless servomotor / synchronous / electric / 24 V

Brushless three phase synchronous drives with powerful motor systems and integrated electronics for operation at selective 24VDC or 48VDC. With their pleasing design these compact drives are well suited for peripheral application in single or multi axes systems. Due to the high resolution evaluation of rotor angle based on a hall system the HBI drives become real dynamic servo systems.
Combined with the motors sinusoidal current feed a constant and even torque development is assured and excellent control properties are achieved.
The HBI´s are operated either by analogue / digital signals in speed mode and torque mode or via the CANopen® interface providing profile position, profile velocity or profile torque mode. The profile position mode supports absolute and relative demands. Homing is done onto the limit switches, against a mechanical stop or at the current position. The electrical connection is done through a compact rotary connector equipped with one or two plugs depending on the drives version.
The drives configuration is done via RS232 and a clear and simple to use PC-Software "DSerV".

Specifications

  • Type: brushless, synchronous
  • Technology: electric
  • Voltage: 24 V, 48 V
  • Other characteristics: integrated-drive
  • Torque: Min.: 0.17 Nm (0.13 ft.lb)
