Brushless motors

TM4

  • AC motor / synchronous / brushless / medium-voltage
  • AC motor / synchronous / brushless / medium-voltage
  • AC motor / synchronous / brushless / medium-voltage

max. 90 kW | HSM series

Article: 00014602

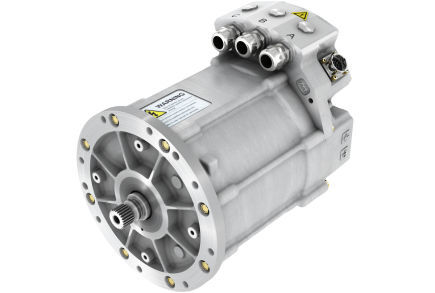

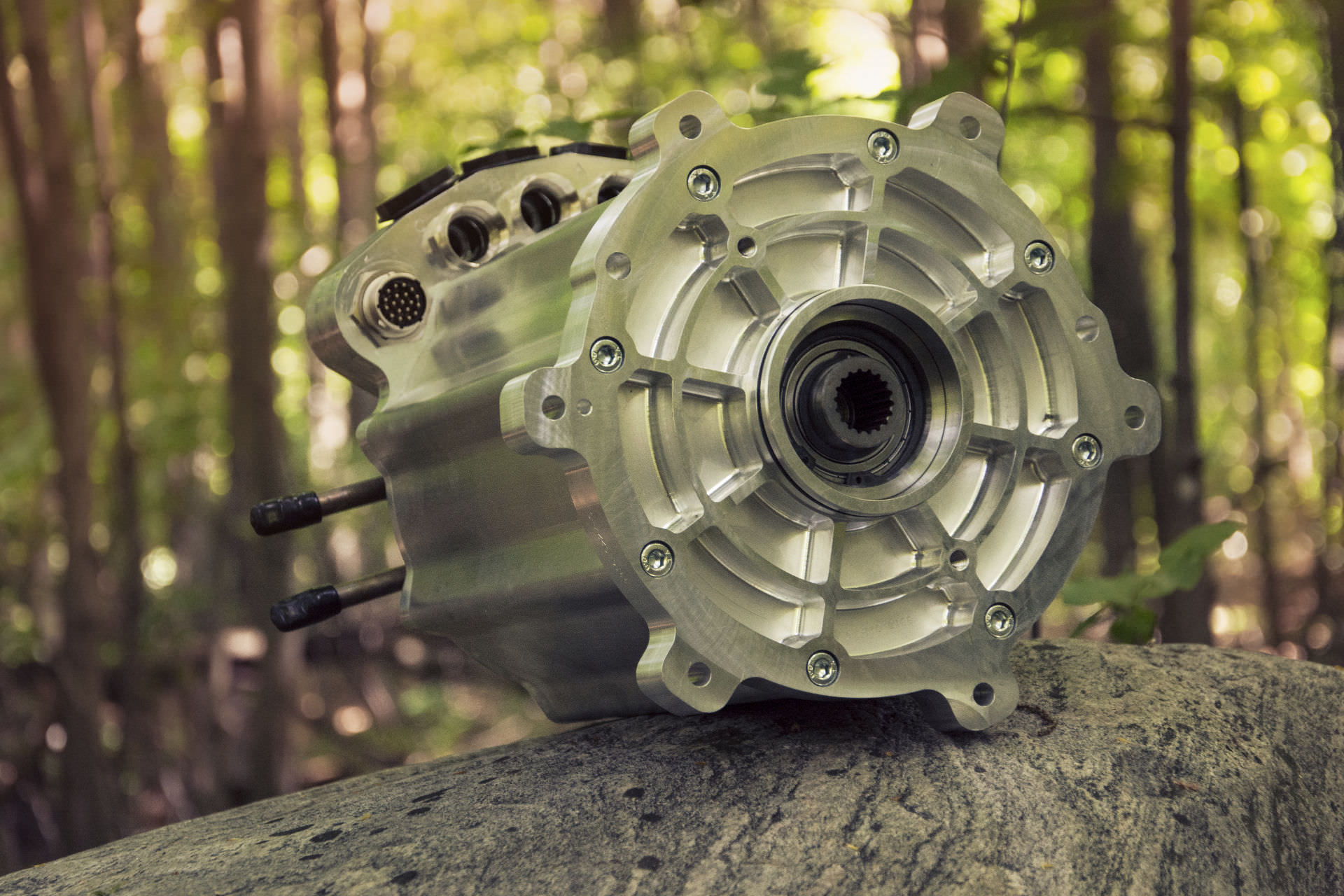

AC motor / synchronous / brushless / medium-voltage

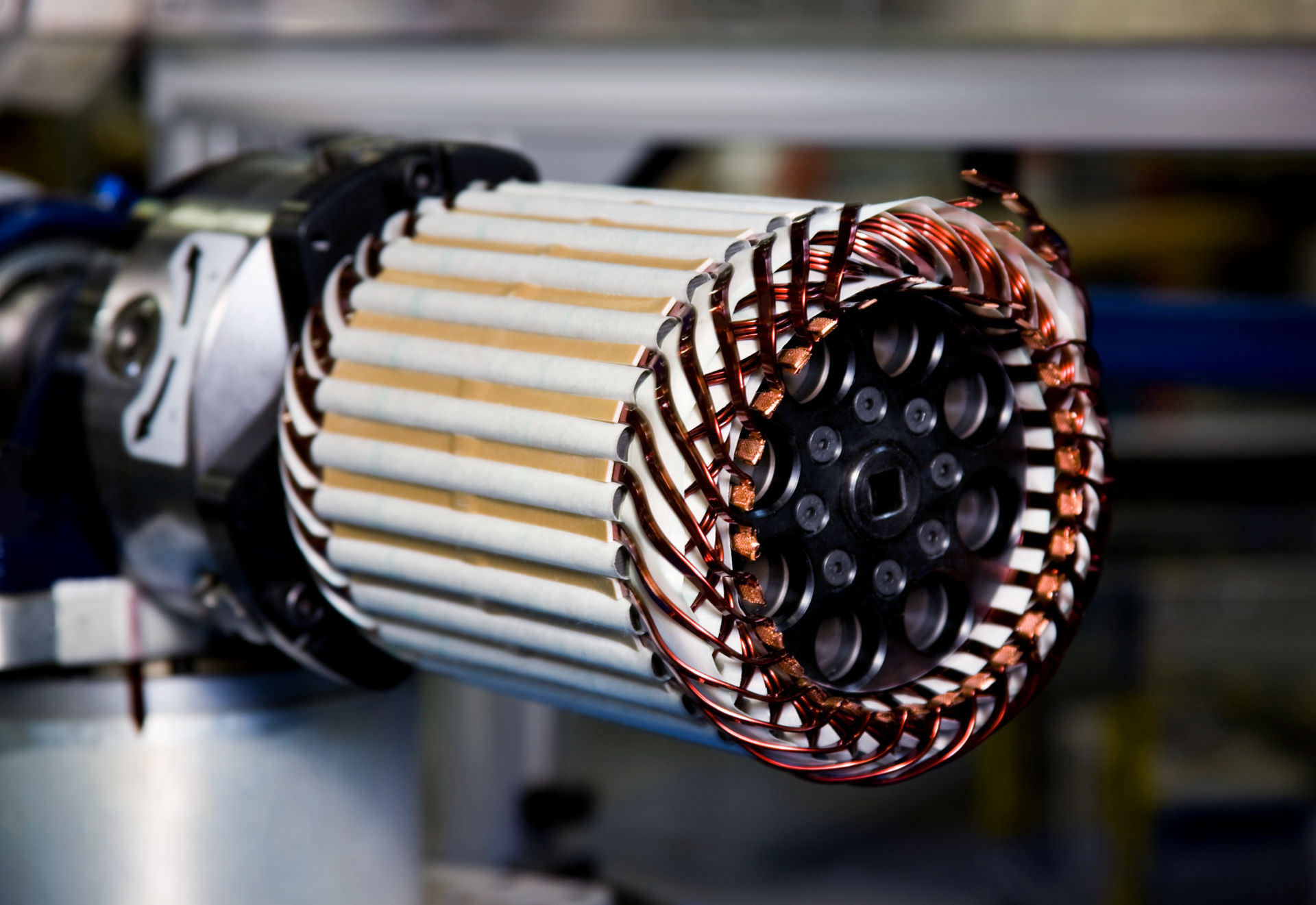

From the TM4 MOTIVE? series, TM4 introduces this family of high speed / medium voltage (450 Vdc) systems. The series is an efficient turnkey solution created expressly for a range of electric and hybrid applications, with emphasis on light-duty vehicle platforms. The motor topology is based on an external rotor technology that maximizes the use of the magnets and reduces the amount of rare earth materials.
Outer rotor topology for maximum torque density
Reflex? gate driver technology
Four-quadrant operation
Low electro-magnetic audible noise
Low-cogging torque for better NVH
3-phase EMI filter
Multiple compatible gearboxes

Specifications

  • Type: AC, synchronous, brushless
  • Technology: medium-voltage, external rotor, three-phase, permanent magnet
  • Applications: for marine applications, vehicle, for the automotive industry
  • Protection level: IP69K
  • Features: small, compact
  • Voltage: 180-440 V
  • Other characteristics: water-cooled, high-performance, traction, high-speed, high-power, with control system, high-efficiency
  • Torque: Min.: 40 Nm (29.5 ft.lb)
  • Power: Min.: 15 kW (20.12 hp)
  • Rotational speed: Min.: 9500 rpm (59690.26 rad.min-1)
