Floor duct for heavy-duty applications

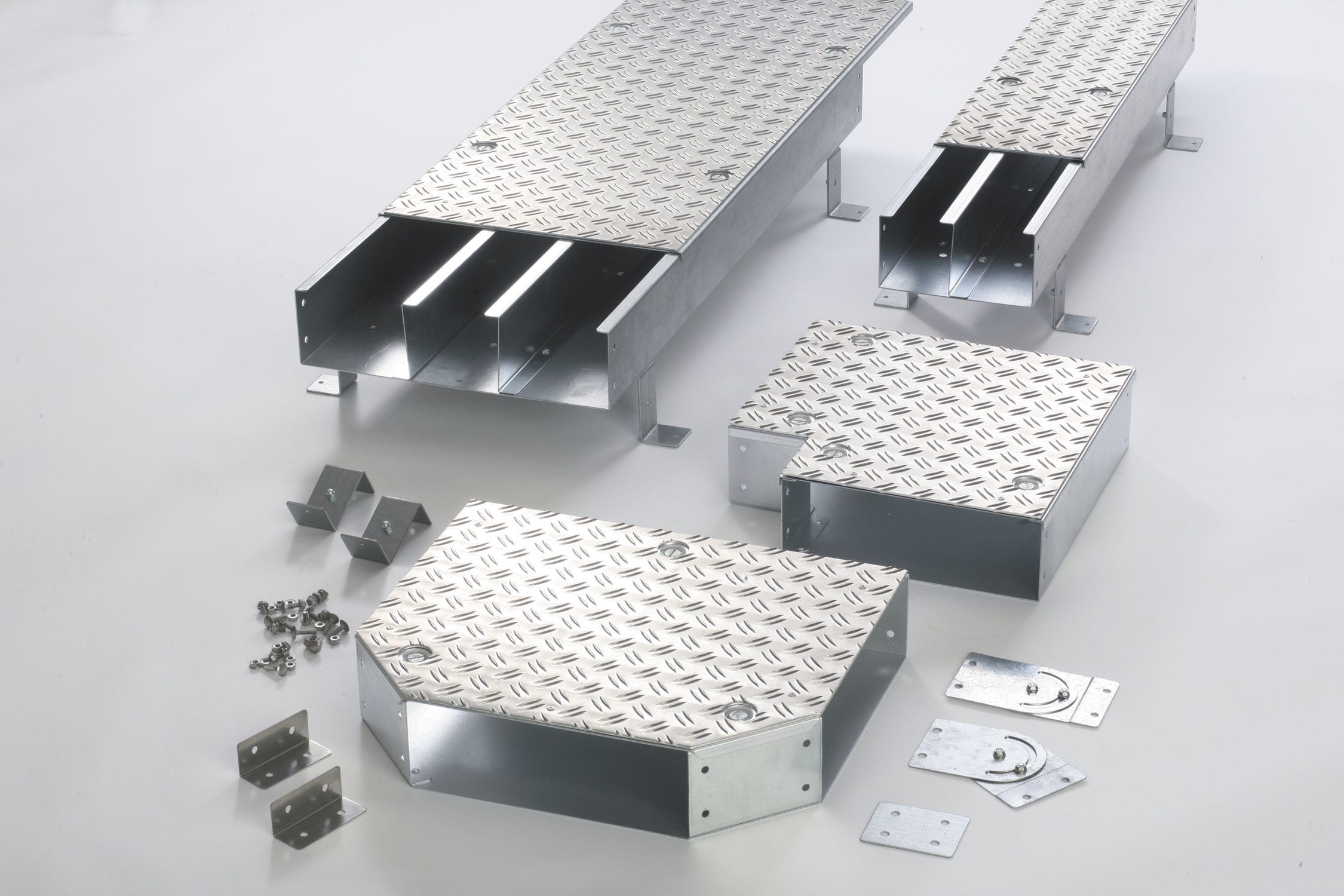

PFLITSCH Automobile-Trunking: The solution for demanding mechanical requirements

PFLITSCH?s Automobile-Trunking is the heavy-duty variant of the proven Industrial-Trunking. It conforms to the works standards of numerous automobile manufacturers and fulfils the high requirements of this industry. Furthermore it is also used as anti-slip floor trunking in many automated robotic production plants because it can carry footfall loading of up to 1,200 N without problems. A channelled sheet covering fulfils the necessary anti-slip and walking safety requirements (R10). With seven cross sections from 100 mm to 600 mm wide, base perforations available on standard production articles and universal separating walls, this robust trunking can be used almost anywhere.

Automobile-Trunking is precisely manufactured out of 2 mm thick, zinc-coated steel sheet. Standard versions of Automobile-Trunking are 100 mm high, and when floor mounted with support legs and channelled sheet coverings are still less than a step height of 200 mm. When used with variable bends, Automobile-Trunking can be aligned in the vertical plane at any angle between 90° and 180°. Of course, this robust Automobile-Trunking can be cut and shaped using PFLITSCH tools and machine tools individually on site, or ordered as ready-made component assemblies.

Specifications

  • Other characteristics: for heavy-duty applications
