Article: 00017606

Wire basket cable tray

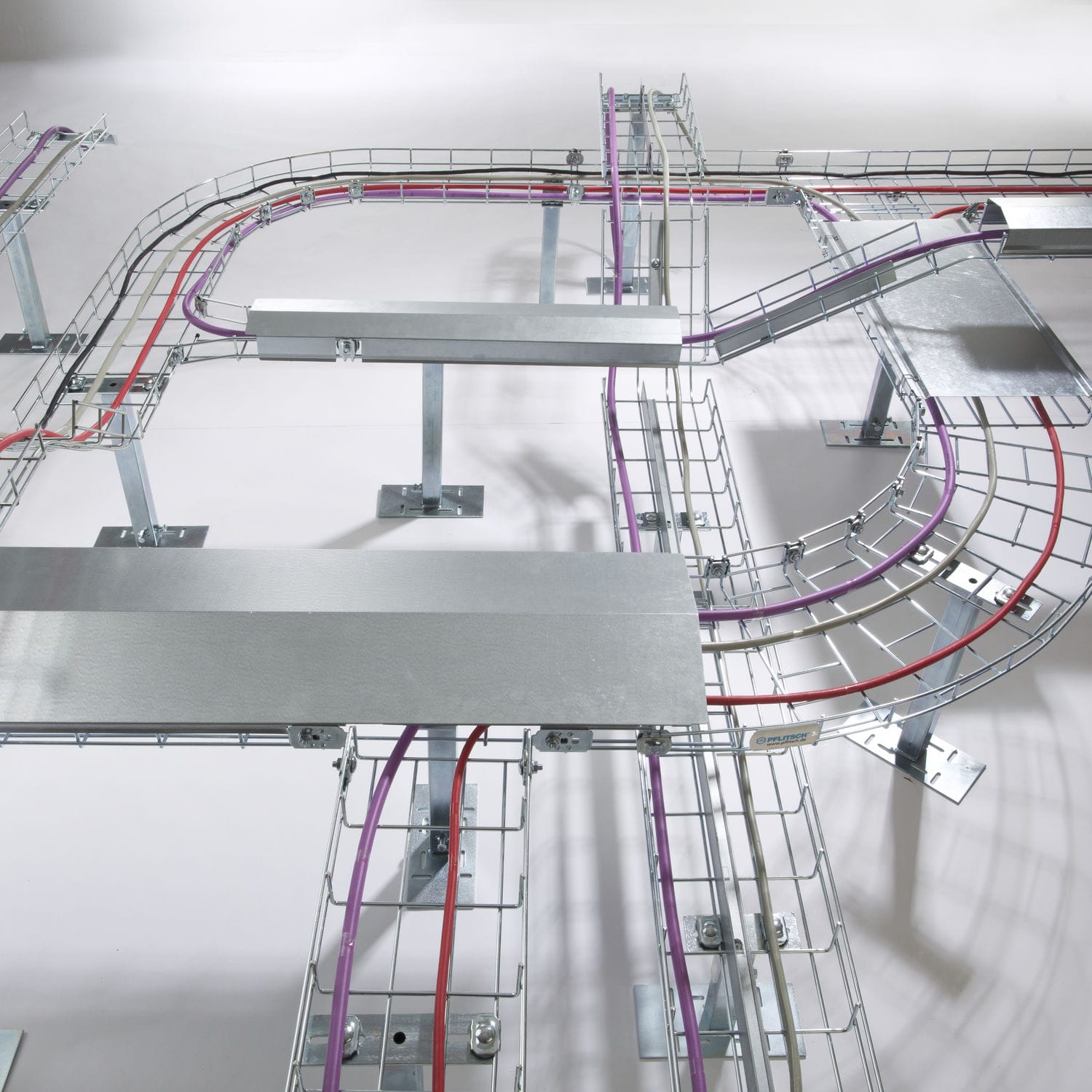

Wire Tray: The open cable routeing system

The open wire tray from PFLITSCH offers optimum cable routeing solutions in challenging industries such as telecommunications and data transmission, machinery and equipment, and the food and chemical industries. High-grade wires are connected together using a special welding technique to create a very robust construction. The wire ends are bevelled so as not to damage the cables. The open cable routeing system means the cables are very easy to manage. No build-up of heat, either. Added to that, the installed wire tray is easy to clean: a hygiene requirement called for both in the food industry and in chemical industry and pharmacy. The open wire tray from PFLITSCH is approved in accordance with UL and DNV requirements for offshore use.

Wire tray is available in the qualities zinc-plated steel, hot-dip galvanised steel, stainless steel AISI 304 an stainless steel AISI 316L. AISI 316L is acid resistant and is outstandingly suitable, for example, for use in the food industry.

Wire tray is available in various sizes and forms. Cutting to length, shaping and preassembling wire tray is as easy as could be: In just a few steps, you can create curves, corners, upstands and reducers out of wire tray by simply cutting out the unnecessary wires using wire tray shears. The segments are then firmly screwed together with connectors and any open wire ends securely sealed off with end caps. More and more users are taking advantage of PFLITSCH?s preassembly service, which delivers ready-to-install wire tray component assemblies at a fixed price.

Specifications

  • Material: wire basket
